Cabinet Pulls
Side-Mounted Aluminum Edge Pull
Discover the BRS-EDG-ALU-002 side-mounted aluminum edge pull by Brassera. Concealed L-profile design, brushed coffee finish, and full custom sizing.
Specifications
- Model
- BRS-EDG-ALU-002
- Material
- Aluminum alloy
- Shape
- Rectangle
- Design style
- Modern / Minimalist
- Profile
- L-shaped extruded section with hollow rectangular ends
- Mounting
- Concealed side-mounted edge fastening
- Mounting holes
- Two countersunk screw holes on rear flange
- Finish options
- Matt Black, Brush Brass, Satin Nickel, Brush Satin, ORB, Coffee (Brushed Coffee pictured)
- Usage
- Cabinets, drawers, dressers, wardrobes, cupboards, wine cabinets
- Customization
- OEM and ODM customization available (custom lengths and heights upon request)
- Package size
- 18 × 16 × 14 cm
- Gross weight
- 0.5 kg
- Minimum order
- 50 pieces
- Brand
- Brassera

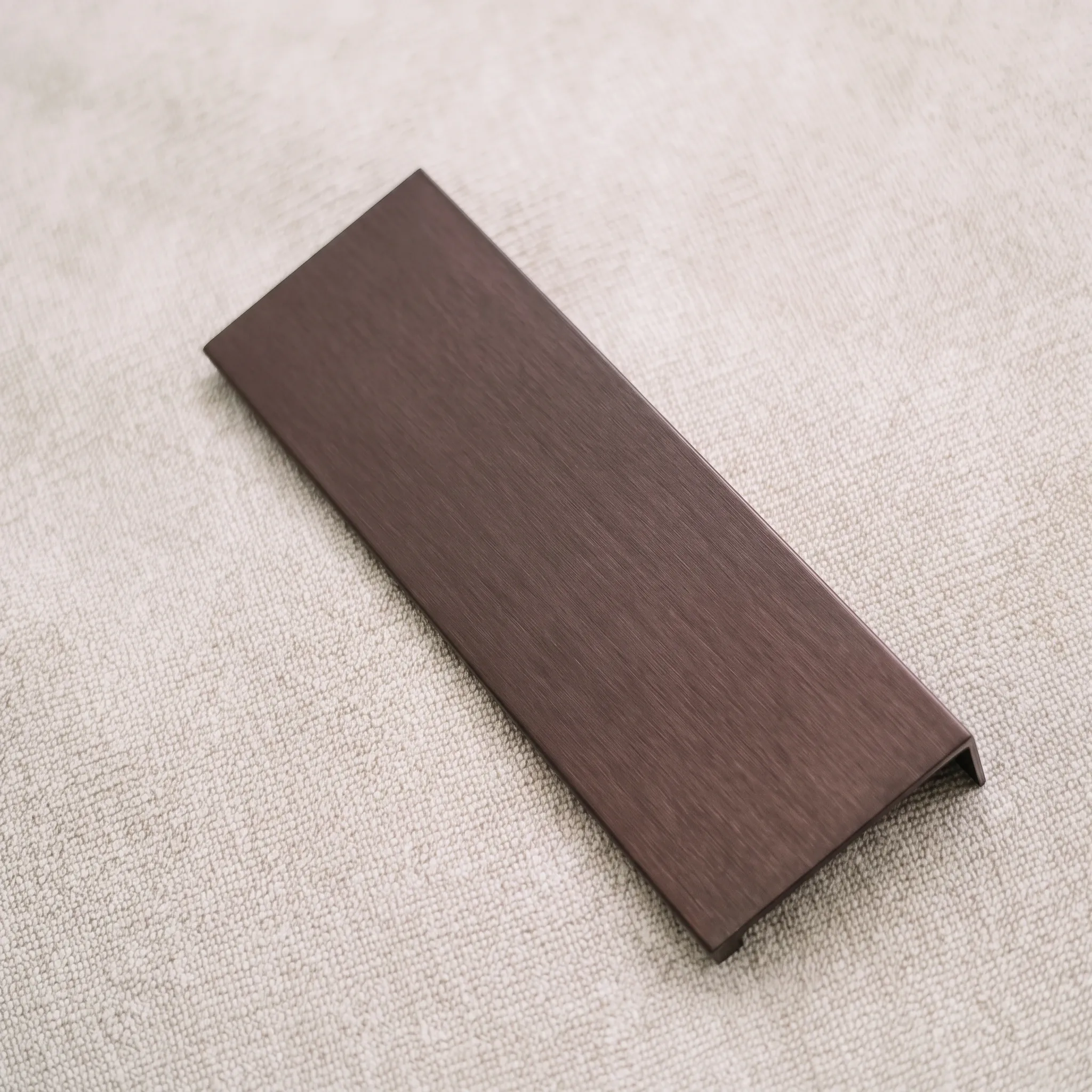

Side-Mounted Concealment for Unbroken Millwork Lines
The Brassera BRS-EDG-ALU-002 side-mounted edge pull delivers an ultra-clean architectural solution for contemporary millwork and flush casework. Rather than projecting outwardly from drawer or door faces, this linear aluminum profile mounts along the side border of the panel. The flat brushed face plate wraps neatly around the panel perimeter, while the mounting return flange remains tucked behind the door, preserving uninterrupted sightlines across your entire cabinetry elevation.

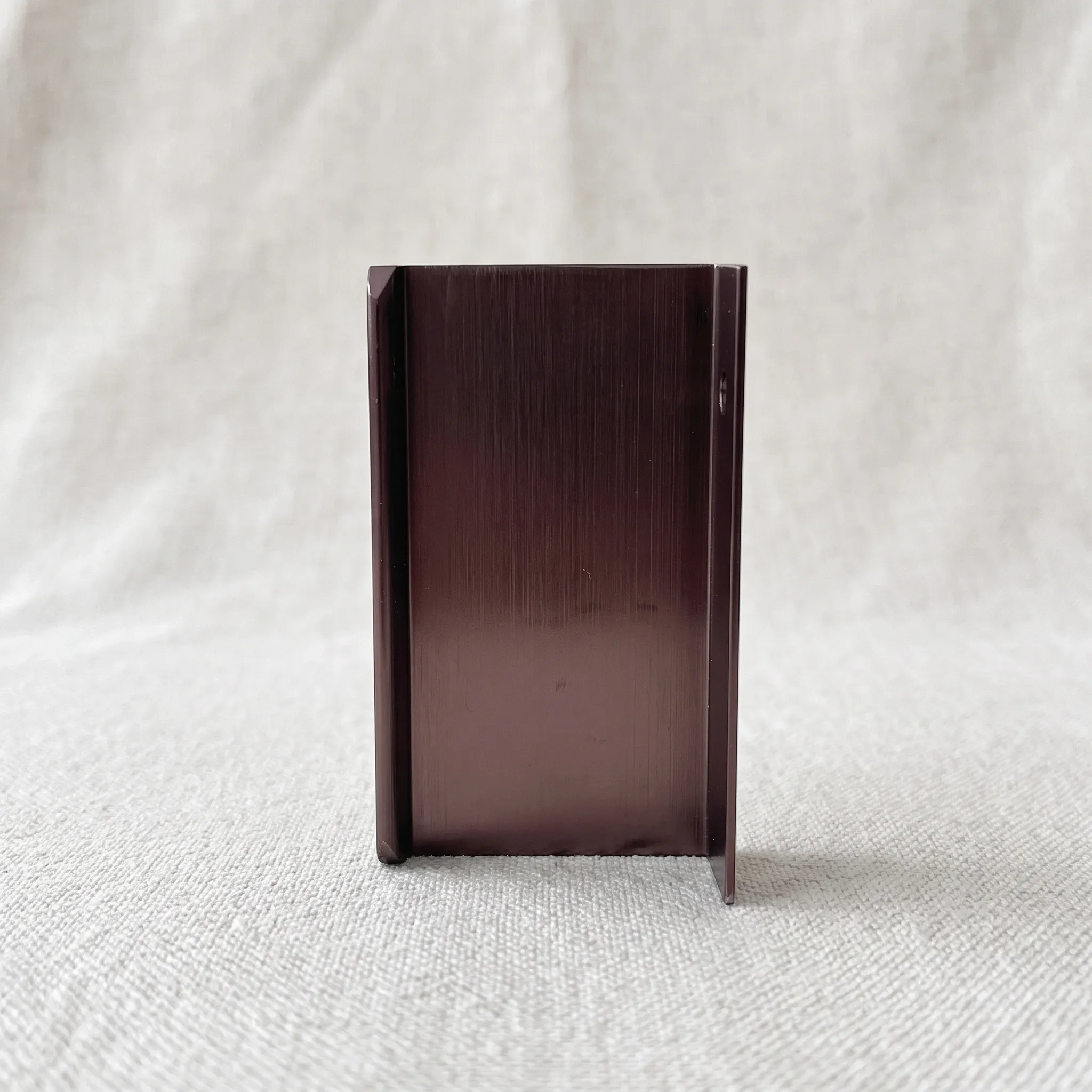

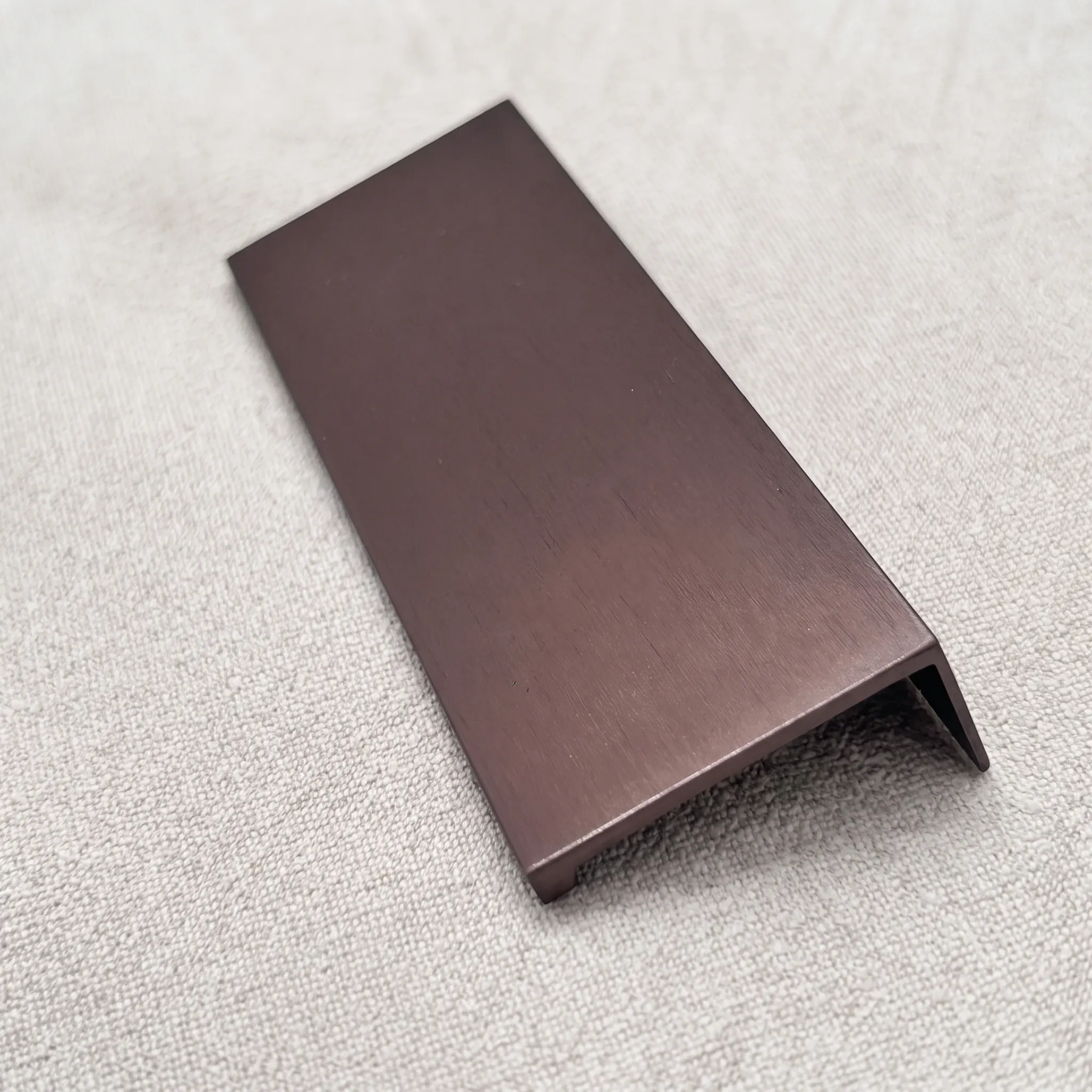

L-Shaped Extrusion Architecture with Hollow Box Terminations
Engineered from continuous extruded aluminum, this handle features an L-shaped cross-section defined by a flat rectangular front plate that transitions through a precise 90-degree angle into the anchoring flange. Clean hollow rectangular terminations at both ends complete the streamlined profile, eliminating visual heaviness. By replacing bulky surface-mounted pulls with an integrated edge trim, this concealed design creates a refined, visually hardware-free facade that emphasizes the natural beauty of slab doors and custom veneer panels.
Lightweight Aluminum Substrate in Brushed Coffee
Fabricated from resilient aluminum alloy, the BRS-EDG-ALU-002 offers lightweight structural rigidity that keeps added weight low on drawer and door hardware. The alloy naturally resists rust and everyday ambient oxidation, ensuring lasting surface stability throughout active interior spaces. Highlighted in a rich brushed coffee tone, the fine linear texture softens ambient light and adds warm metallic nuance to contemporary joinery.

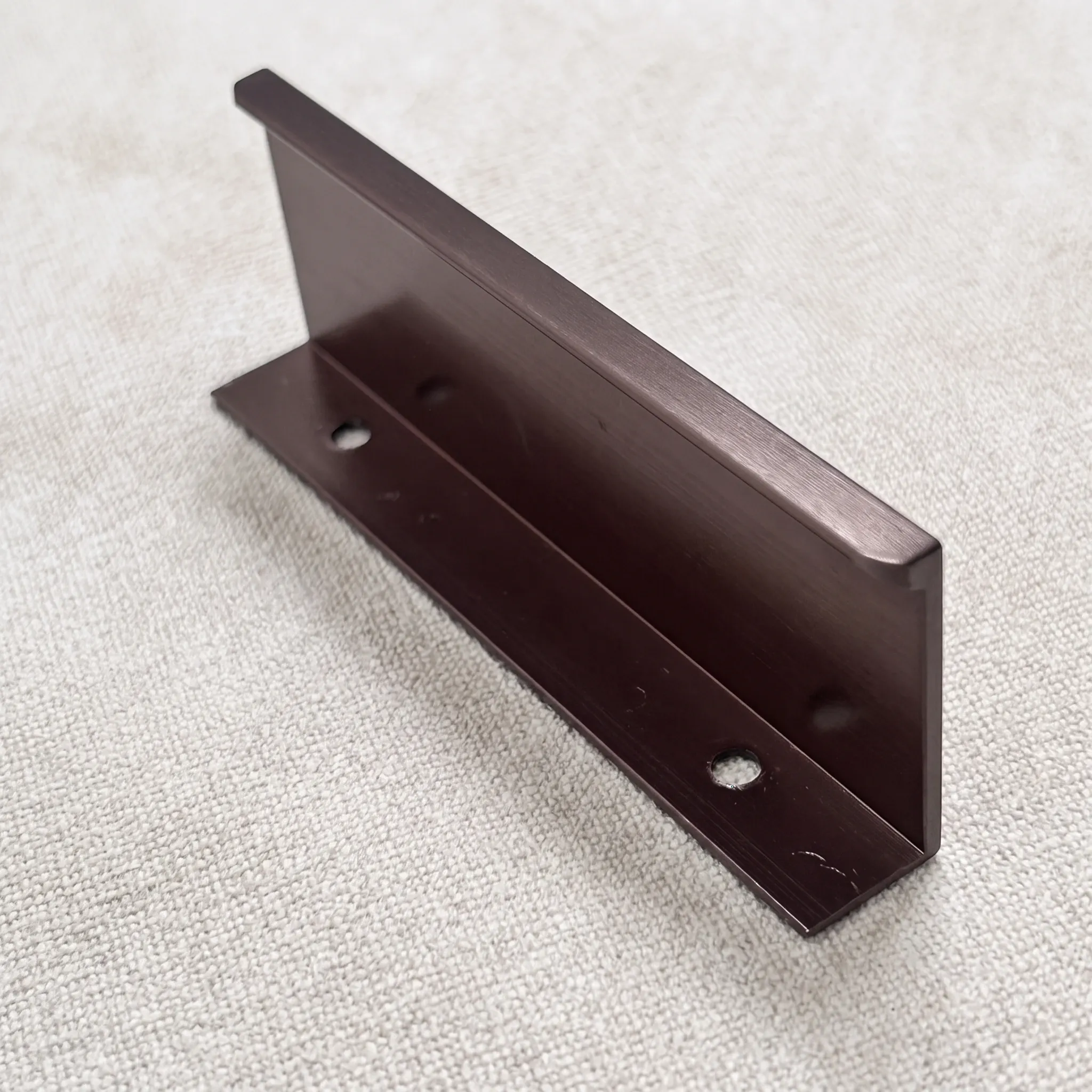

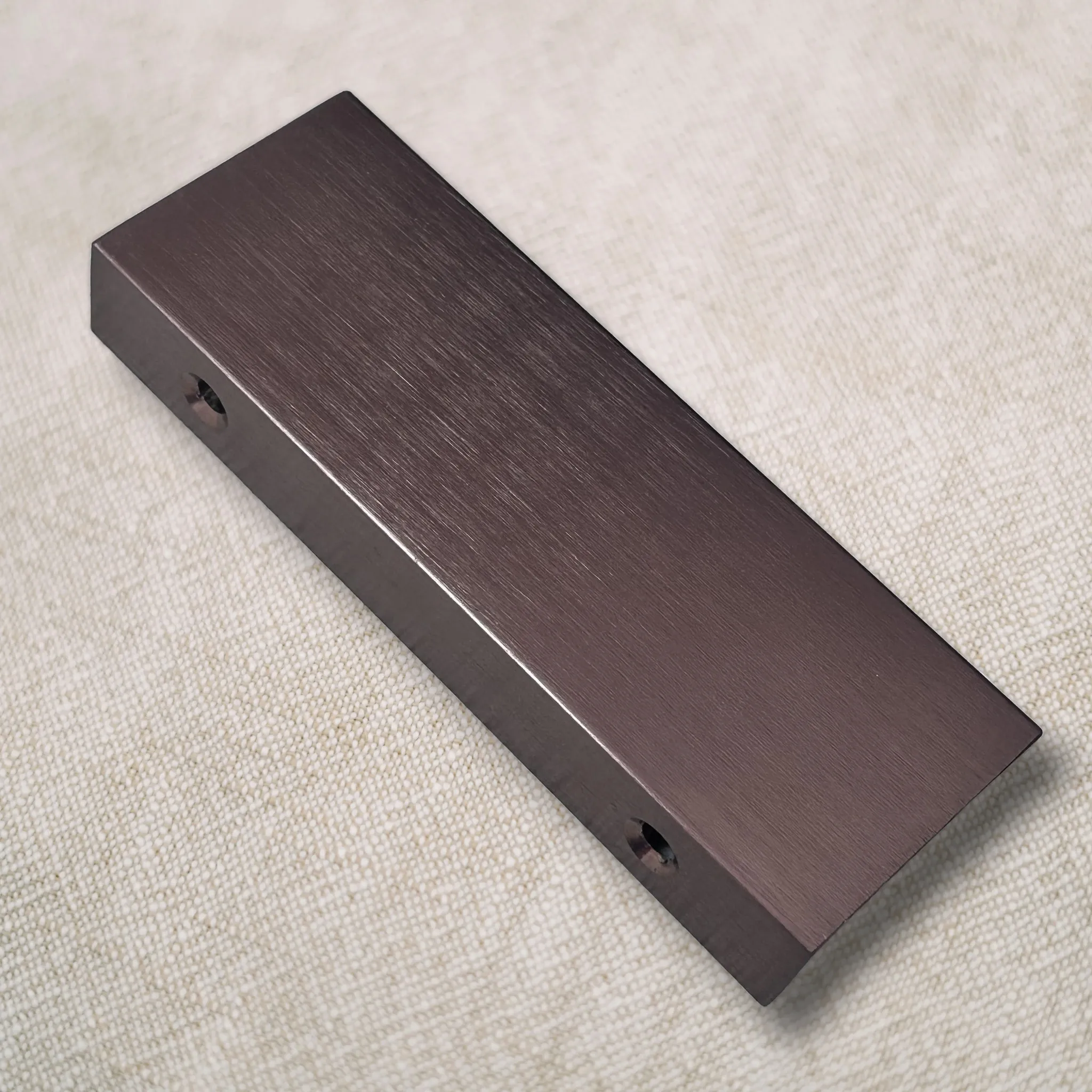

Rear Flange Anchoring via Dual Countersunk Fasteners
Securing the pull is straightforward and completely hidden from the front view. Fasteners install directly through two pre-formed countersunk holes on the rear return leg, anchoring the metal profile firmly into the edge of the wooden door or drawer box. This rear-attachment geometry ensures solid pulling leverage during daily operation while keeping all mechanical fixings entirely concealed when the cabinetry is closed.
Six Architectural Tones and Bespoke Sizing Flexibility
To suit diverse interior palettes, Brassera manufactures this side-mounted pull in six curated finishes: Brushed Coffee, Matt Black, Brush Brass, Satin Nickel, Brush Satin, and Oil Rubbed Bronze. Beyond standard options, Brassera accommodates comprehensive OEM and ODM bespoke manufacturing. Millwork contractors and interior designers can request tailored lengths, custom height dimensions, and specialized brand markings upon order confirmation to match unique architectural casework drawings.
Elevating Storage Joinery from Dressers to Wine Display Cases
With its low-profile silhouette, the BRS-EDG-ALU-002 adapts readily across a wide variety of residential and commercial storage applications. Mount it vertically on floor-to-ceiling bedroom wardrobes and pantry cupboards, or position it horizontally across wide dresser drawers and kitchen base units. The flush side-mount format also excels on dedicated wine cabinets, custom credenzas, and vanity units where protruding hardware might otherwise obstruct narrow walkways or adjacent doors.
Submit Your Joinery Schedule to Brassera
Whether outfitting a private residential renovation or planning a large-scale custom hospitality fit-out, Brassera provides direct technical consultation for your architectural hardware requirements. Our team assists in reviewing panel thicknesses, coordinating finish selections across multi-room schedules, and processing custom fabrication requests. Contact Brassera today to submit your millwork schedules or request project-level trade support tailored to your project layout.
