Cabinet Pulls
Semi-Circular Bent-Bar Cabinet Pull
Brassera BRS-BAR-ZNC-010 bent-bar cabinet pull features zinc alloy legs with five C.C spacings from 96 mm to 320 mm, plus customized sizes for casework.
Specifications
- Model
- BRS-BAR-ZNC-010
- Material
- Zinc alloy
- Type
- Bent-bar cabinet pull
- Design style
- Modern
- Shape
- Straight bar bent down into two legs with semi-circular outer faces
- Colour
- Matt Black, Satin Nickel
- Center-to-center
- 96 mm, 128 mm, 160 mm, 192 mm, 320 mm (customized on request)
- Height
- Customized
- Mounting
- Threaded sockets in the leg ends, single fixing point per leg
- Usage
- Cabinet doors, drawer fronts, dressers, wardrobes, cupboards, wine cabinets
- Application
- Kitchen, bathroom, bedroom, living room, dining room, kids room, apartment
- Feature
- Eco-friendly, easy installation, resists rust, multi-purpose
- OEM/ODM
- Accepted
- Logo
- On product and packaging
- Sample
- Can be provided
- Minimum order
- 200 pieces
- Lead time
- 7 days (1-300 pcs), 12 days (301-1000 pcs), 18 days (1001-3000 pcs)
- Package size
- 12 x 10 x 6 cm
- Gross weight
- 0.3 kg
- Selling unit
- Piece
- Place of origin
- Guangdong, China
- Brand
- Brassera

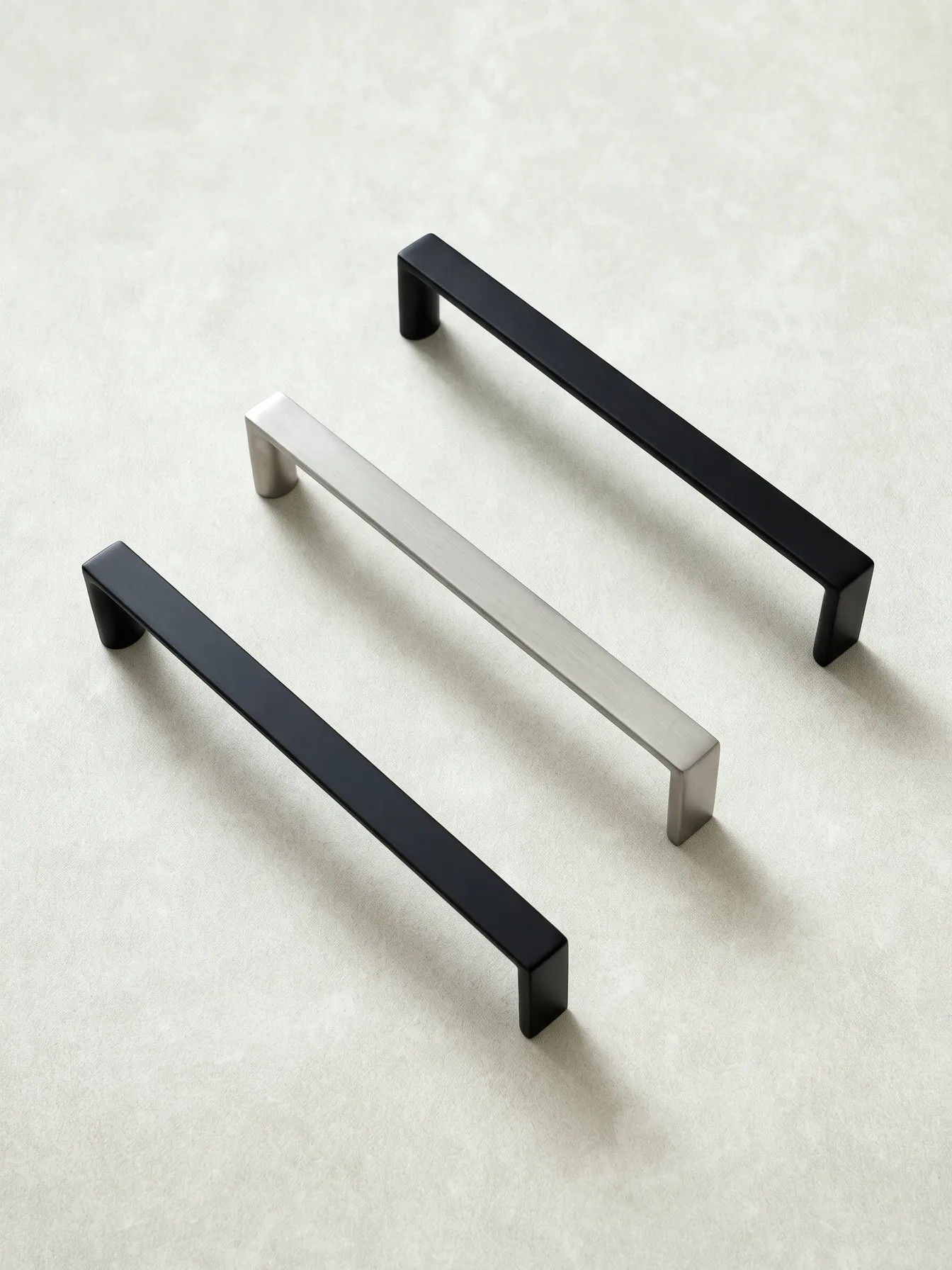

Brassera model BRS-BAR-ZNC-010 is a semi-circular bent-bar cabinet pull made from zinc alloy in Matt Black plus Satin Nickel finishes. Built for contemporary casework, this pull pairs a straight horizontal grip with right-angle leg turns. Architectural specifiers choose these balanced metal handles for residential cabinetry installations. Both factory finishes carry uniform coloration suited to kitchen, bathroom, bedroom, or living room woodwork. The three-piece lineup view shows the family in one frame, so a specifier can compare tones side by side.
A Semi-Circular Bar Bent into Two Legs
Each pull consists of one straight bar turning down at right angles into two short straight legs with semi-circular outer faces. Bar and legs read as one continuous piece in the photos, with no visible joints. Outer leg profiles show rounded semi-circular contours that soften corner geometry, while inner surfaces drop vertically toward panel faces. Flat lower surfaces face the panel, with open clearance beneath. Bar and legs share one section thickness along the pull, visible in the leaning view.
Threaded Sockets in the Leg Ends
Visual evidence reveals threaded sockets integrated directly into both leg ends, giving one fixing point per leg. Each threaded bore receives rear attachment hardware through a woodwork panel. Because the zinc alloy parts resist rust in moist indoor settings, these handles suit humid bathroom storage alongside busy cooking spaces. Flat leg bottoms meet panel faces directly. That bore sits centered in each leg end, as the close view shows.
Matt Black or Satin Nickel
Production photographs confirm two SKU finishes across this bent-bar pull series: Matt Black plus Satin Nickel. Matt Black features an even, non-reflective coating that produces bold contrast on pale painted casework. Satin Nickel shows muted silvery luster with soft reflections across curved leg surfaces. Interior designers select Satin Nickel for neutral palettes, while Matt Black provides graphic definition. Each finish coats the whole pull, bends included.
Five Stock Spacings plus Custom Runs
Standard production covers five fixing spans, measured hole center to hole center: 96, 128, 160, 192, and 320 mm. This modular progression aligns with common cabinet drilling systems used in architectural joinery. Shorter 96 mm or 128 mm options fit compact drawers, whereas longer 192 mm or 320 mm spans accommodate wide doors. Beyond stock sizes, Brassera manufactures customized center-to-center lengths for projects.

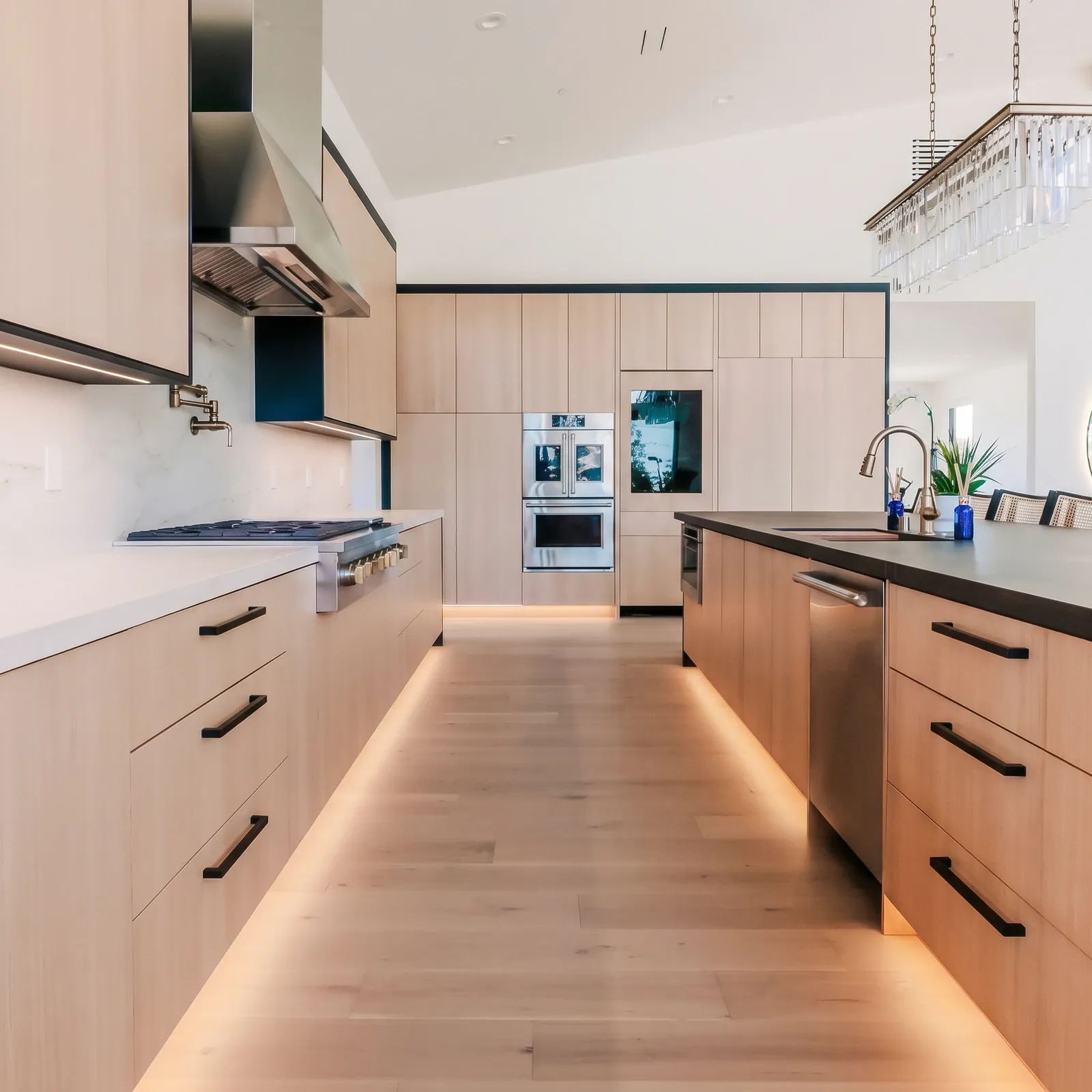

Installers position these bent-bar handles across cabinet doors, drawer fronts, dressers, wardrobes, cupboards, and wine cabinets. Room deployment spans residential interiors including kitchen, bathroom, bedroom, living room, dining room, kids room, or apartment spaces. Consistent handle geometry links varied casework elements into one unified interior scheme. Coordinating shorter pulls on dressers with extended 320 mm bars across wardrobes maintains visual harmony through one home. Narrow drawers take the short spacings, tall doors the long spans.
Trade Orders and Custom Branding
Brassera supports commercial furniture manufacturers plus architectural contractors through OEM and ODM production programs. Custom logo marking can be applied directly to hardware surfaces or printed onto outer packaging cartons. Product sample units can be provided upon request to assist design review prior to volume commitments. Project drawings guide production of customized center-to-center lengths. Logo placement options cover both the pull surface and the carton.
Wholesale runs open at 200 pieces per production batch. Tiered manufacturing timelines allocate 7 days for consignments spanning 1 to 300 pieces. Mid-volume orders between 301 and 1000 pieces take 12 days to leave the factory. Larger shipments covering 1001 to 3000 pieces finish production within 18 days.
Submit finish selection, required center-to-center spacing, plus order quantity to Brassera for an official quotation on model BRS-BAR-ZNC-010. Trade sales staff reply with commercial terms and lead times for the batch. Customized spacings are reviewed against factory tooling. Packing and freight details follow with the quotation.
Products are manufactured in Guangdong, China. The selling unit is one piece.
