Cabinet Pulls
Rolled-Edge Aluminum Alloy Cabinet Pull
A flat cabinet pull in aluminum alloy whose front edge rolls into a full circular curl. Edge-mounted across drawers, wardrobes, and residential casework in ten finishes.
Specifications
- Model
- BRS-EDG-ALU-007
- Material
- Aluminum alloy
- Type
- Rolled-edge cabinet pull
- Design style
- Modern
- Section depth
- 40 mm
- Section height
- 20 mm
- Length
- Made to order in custom lengths
- Finish options
- Gunmetal, Brushed Gold, Chrome, Silver, Bronze, Gold, Matt Black, White, Rose Gold, Brushed Nickel
- Mounting
- Countersunk holes on the rear leg
- Usage
- Cabinet, drawer, dresser, wardrobe
- Application
- Kitchen, bathroom, home office, living room, bedroom, dining room, kids' room
- Feature
- Eco-friendly, easy installation
- Minimum order
- 50 pieces
- Lead time
- 7 days (1-10 pcs), 12 days (11-50 pcs), 20 days (51-200 pcs)
- Package size
- 24 x 18 x 10 cm
- Gross weight
- 0.5 kg
- Place of origin
- Guangdong, China
- Brand
- Brassera

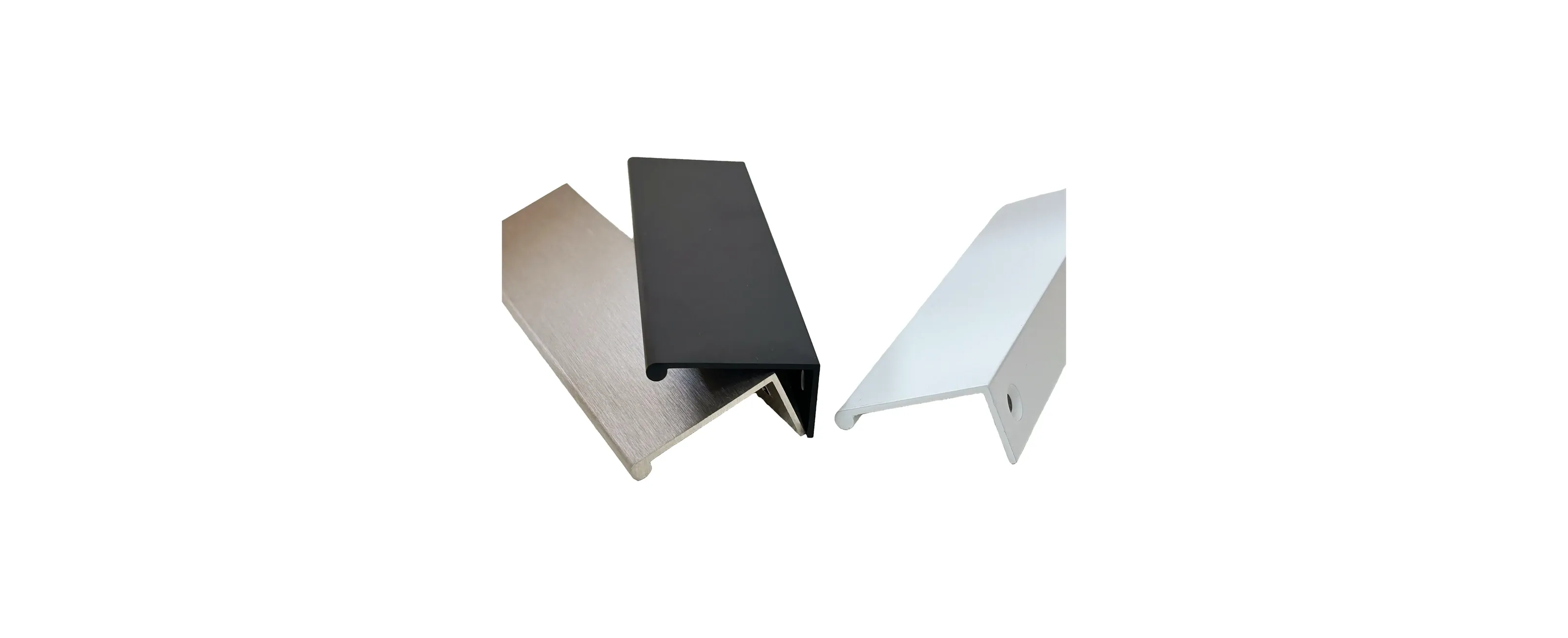

Model BRS-EDG-ALU-007 is an edge pull in aluminum alloy for cabinet work. The top plate rests flat over the panel edge; the rear leg drops straight behind the face; the leading edge rolls into a full round curl that fingers draw from underneath. Runs are cut to order.
Rolled Front Rim with a Full Circular Curl
On top panel edges, a flat plate rests along millwork margins; an upright leg drops behind casework faces to carry the mounting point. Toward the front, this plate sweeps down into a rolled rim, completing a full circular curl overhanging the surface below. That curl turns back under its own margin, forming one tactile pocket where fingertips pull upward from beneath. A rounded rim also softens forward corner lines, so one continuous bank of cabinetry keeps an even grip profile at every drawer or door.

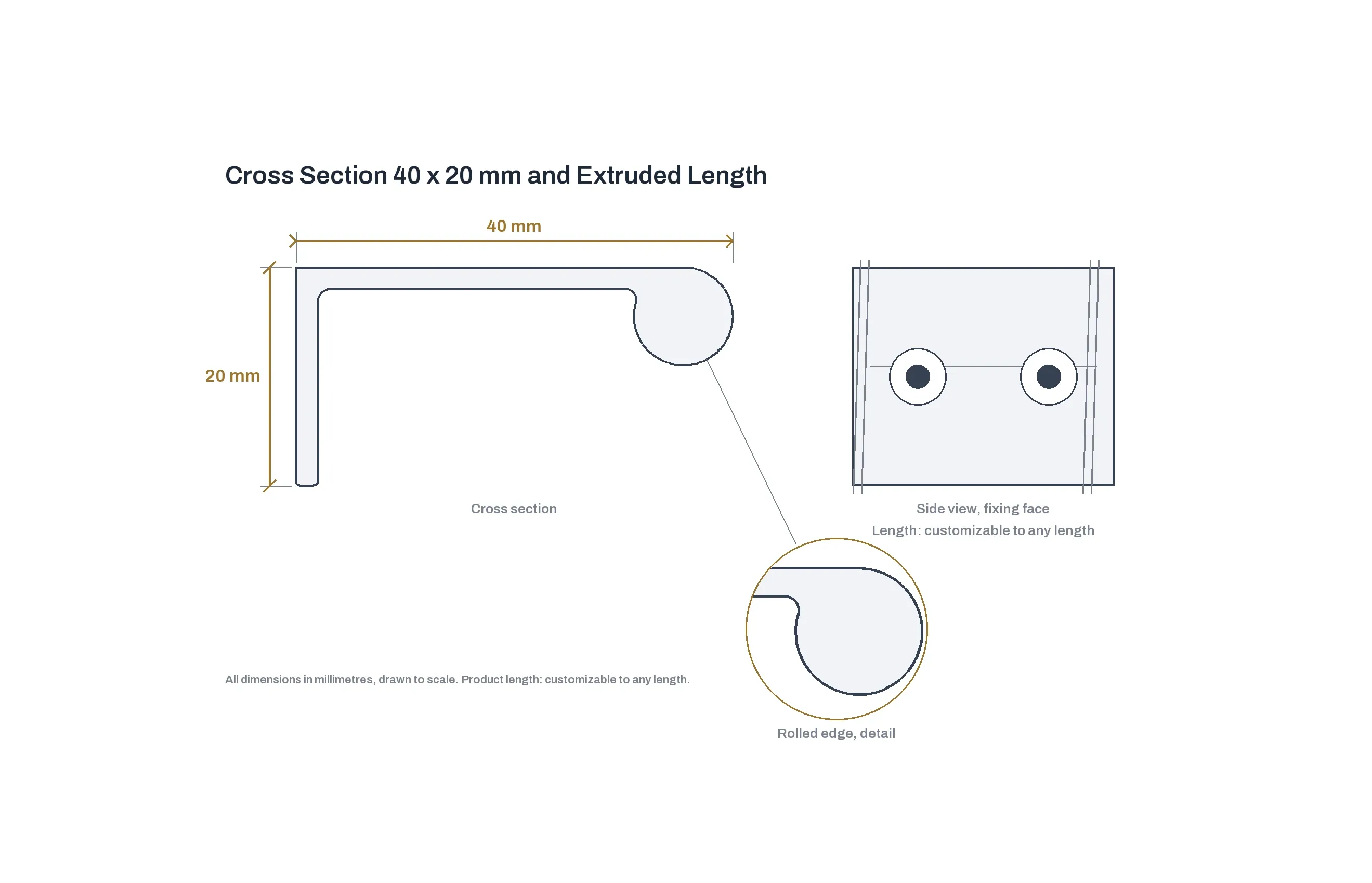

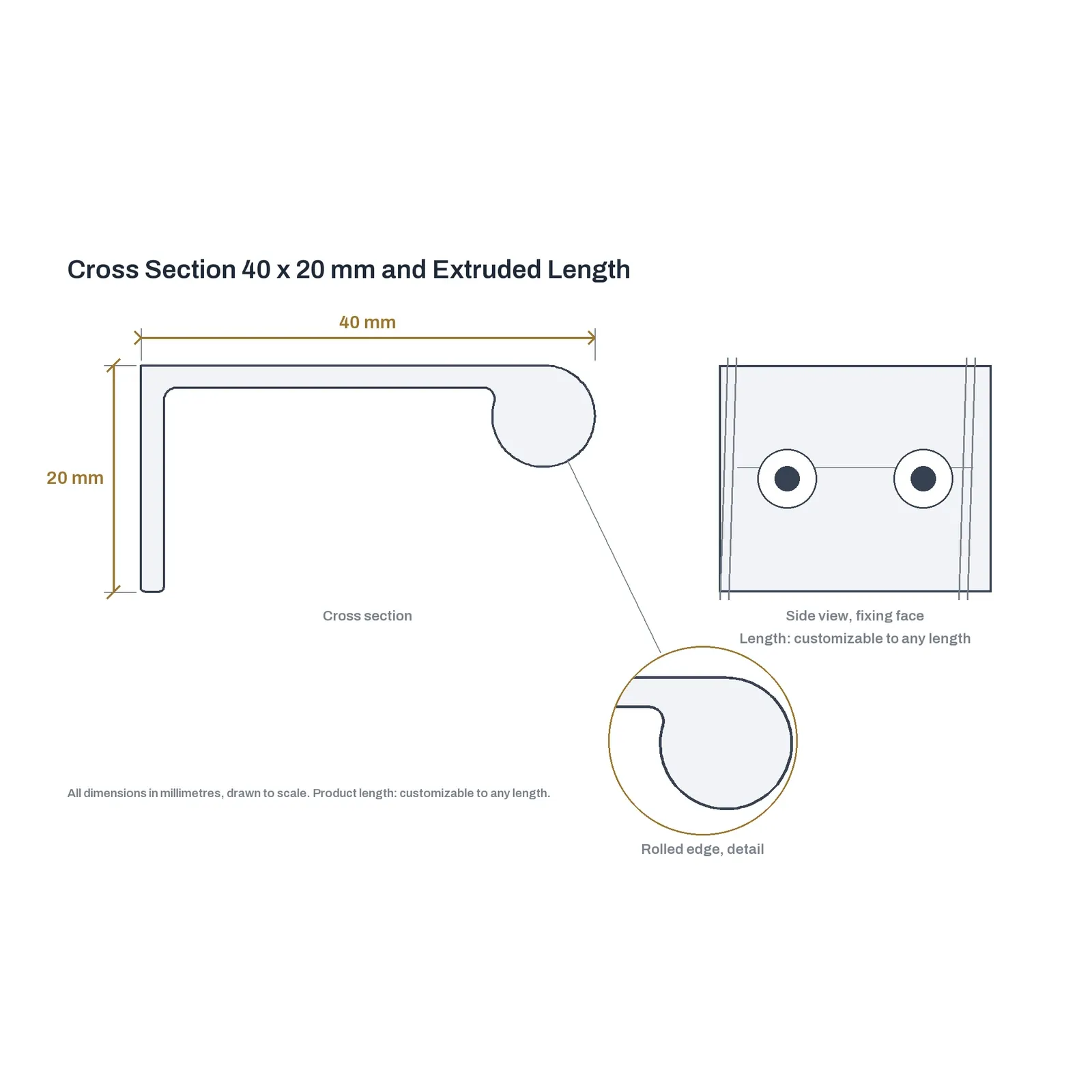

A 40 by 20 Section for Millwork Schedules
Official dimension cards define this cross-section for millwork schedules. Section depth measures 40 mm from back-leg surface to front-curl outer tangent, giving fingers clearance beneath header lines. Section height spans 20 mm from upper plate plane to lower leg edge, keeping profile height low behind any door leaf. One section serves both orientations: horizontal across drawer fronts, vertical along tall doors. Length is not fixed; runs are cut to project specification, matching narrow drawer banks, standard doors, or continuous wardrobe fronts, while every piece keeps one identical section, so one profile note covers the whole schedule.

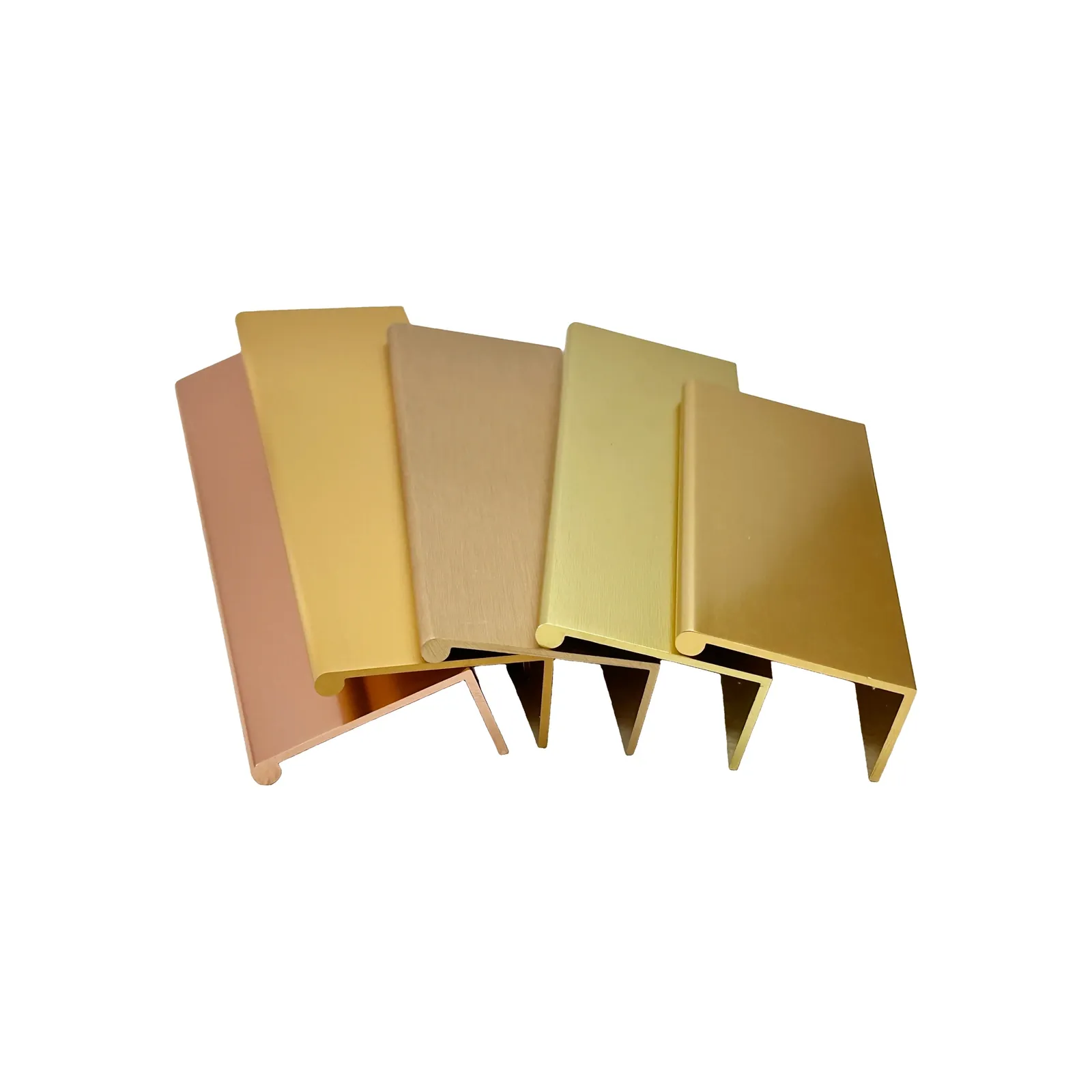

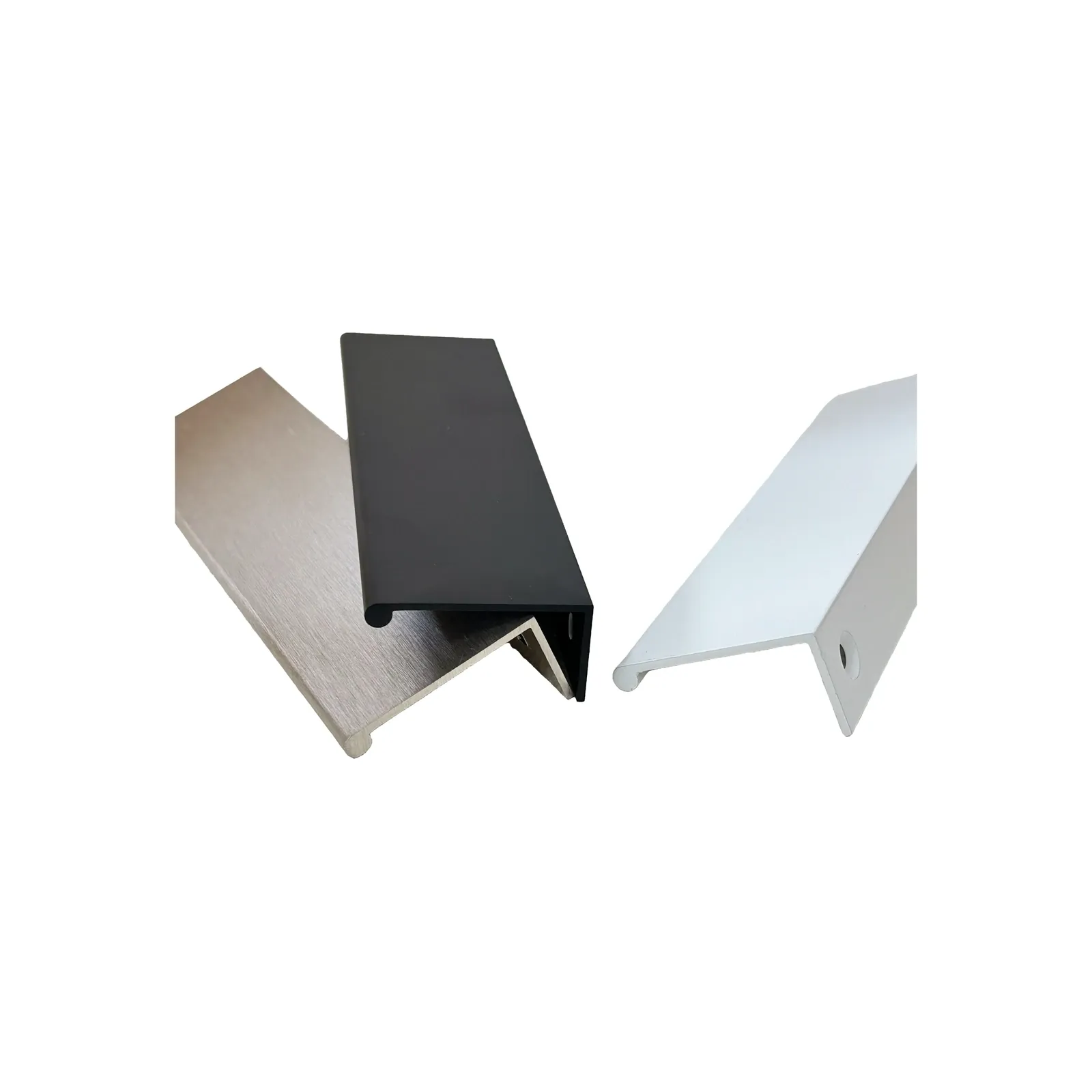

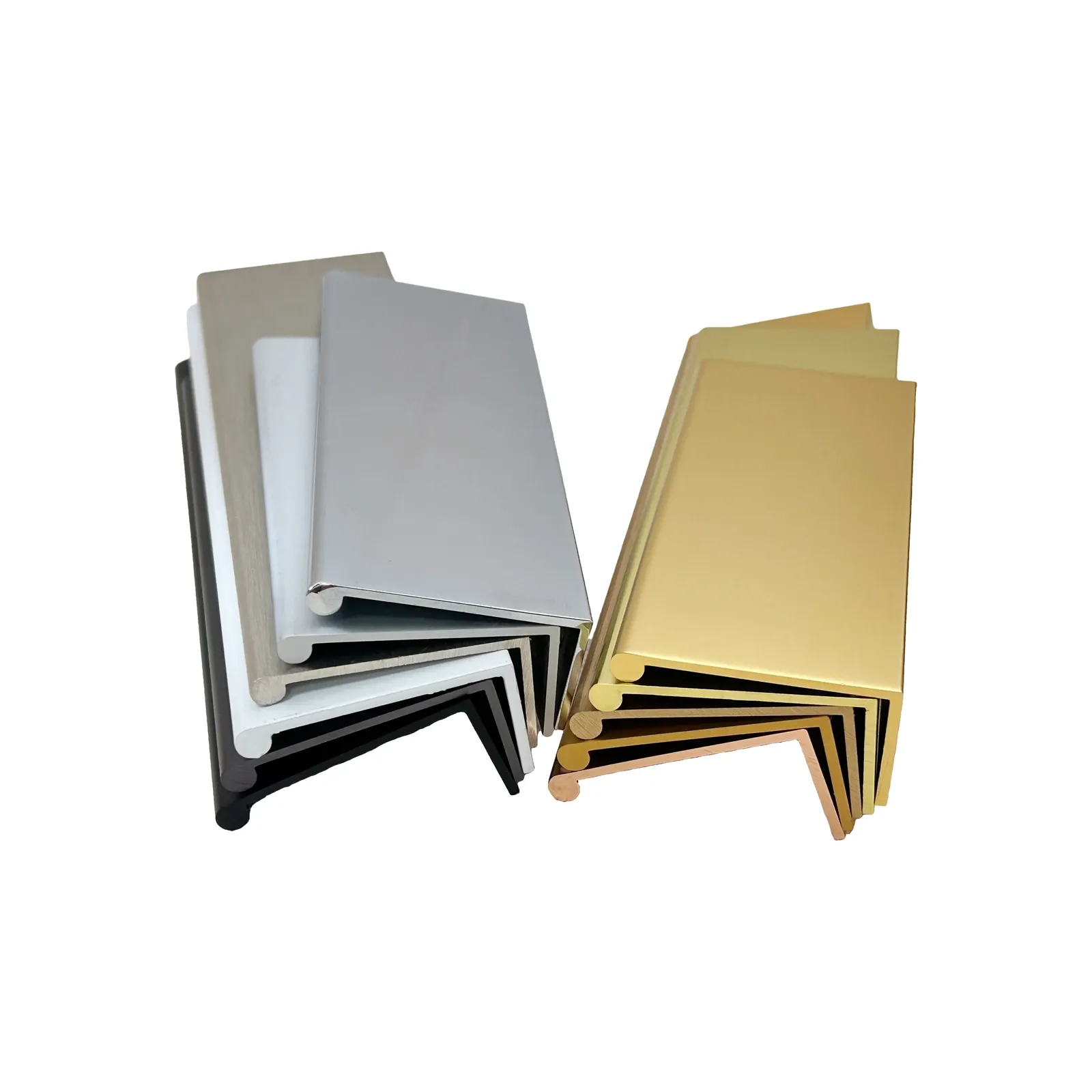

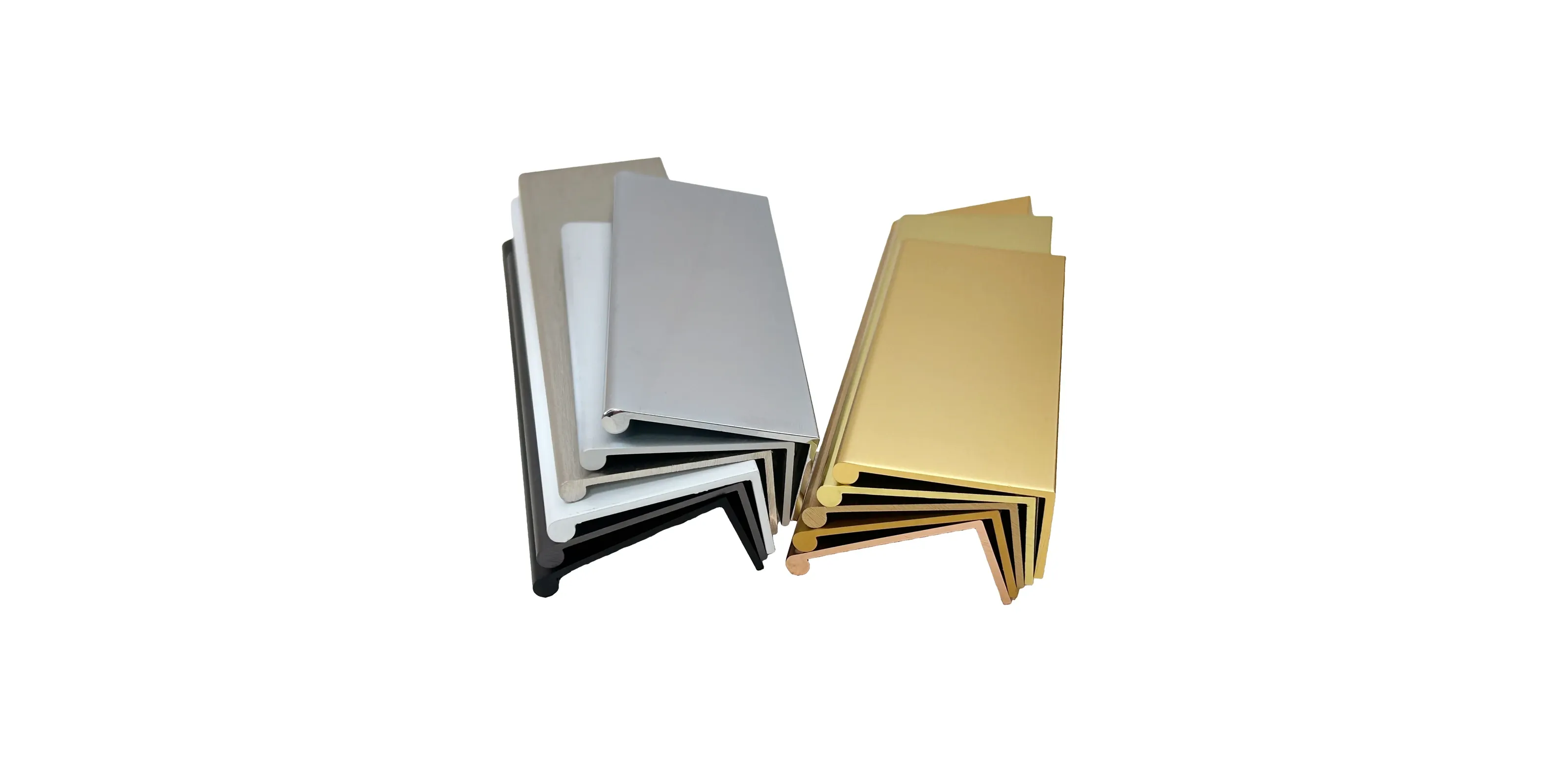

Ten Finishes Arranged in Warm and Neutral Fans
Made from eco-friendly aluminum alloy, ten finishes cover warm and neutral directions. The warm fan gathers Rose Gold, Bronze, Brushed Gold, Gold for timber-rich interiors. Neutral and cool options include Matt Black, White, Silver, Gunmetal, Chrome, and Brushed Nickel. Studio views show brushed surfaces with fine linear grain, chrome with mirror reflection, matt coatings with low sheen. White blends into monolithic joinery, while Gunmetal and Matt Black draw defined outlines around pale panels. One tone can dress an entire project, or two directions can set zones apart. Two studio fans place the groups side by side, so specifiers compare finish sheen before ordering.

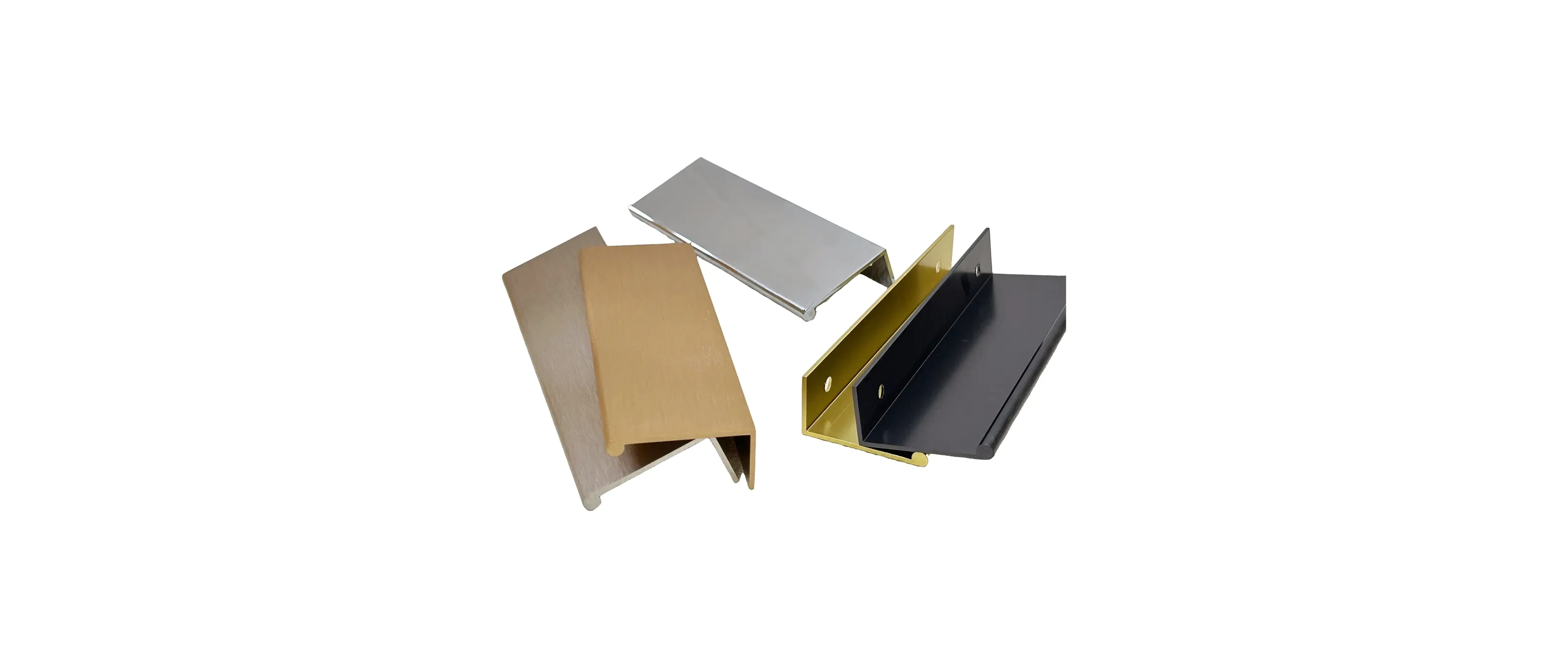

Countersunk Fixing Points and Soft Cloth Care
Mounting uses countersunk holes on the rear leg. Each countersunk seat holds fasteners flush against the inner face, leaving outer elevations clean. Installers set top plates along panel perimeters and check alignment before anchoring at both ends. Care calls for soft damp cloths with mild soap to lift everyday marks from aluminum alloy surfaces. Abrasive pads and aggressive solvents are best avoided; dry wiping leaves sheen uniform along high-touch drawer bands. Between deeper cleans, plain water on a cloth is enough.

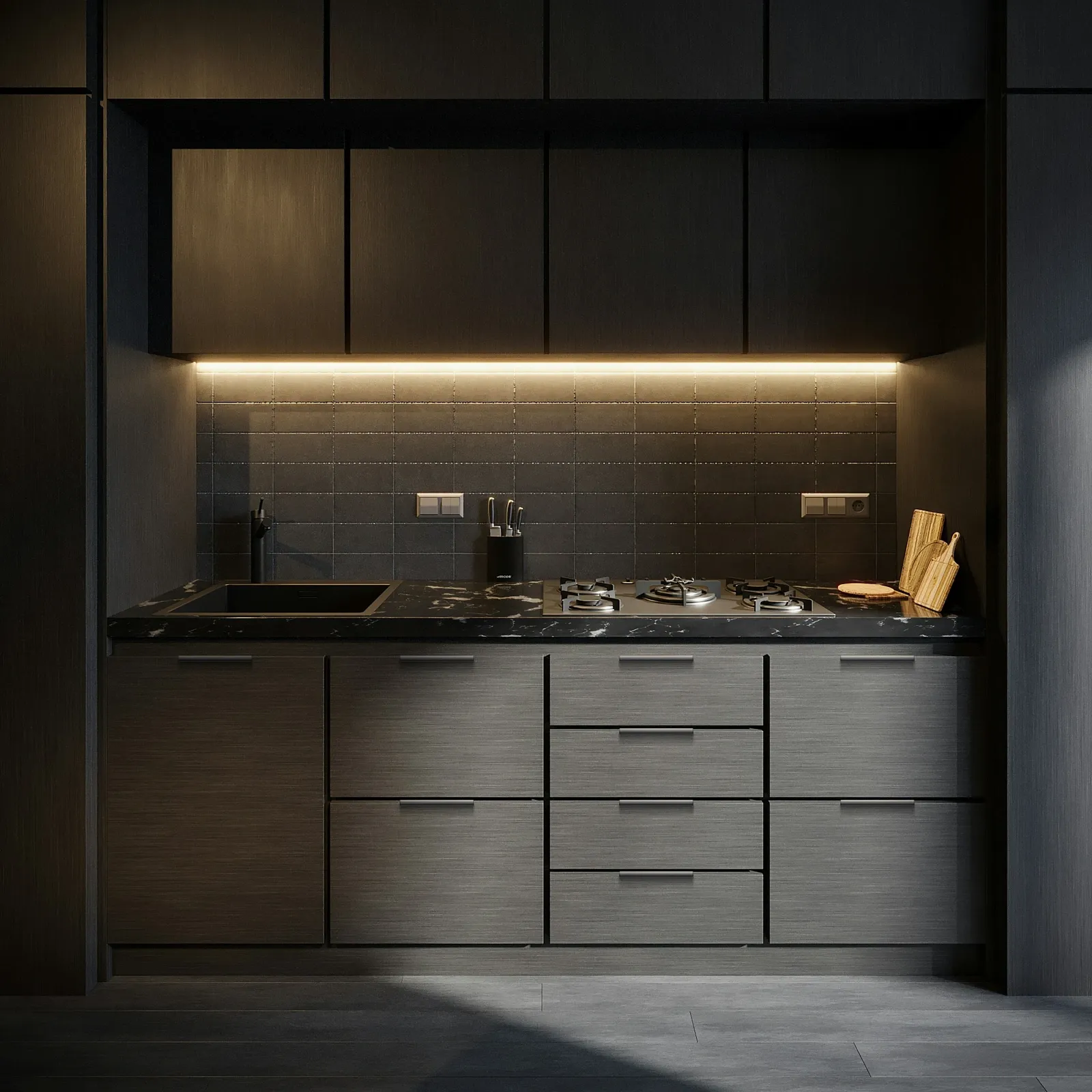

Wardrobe Storage, Vanity Units, and Bedroom Chests
Wardrobe storage, vanity units, and bedroom chests all suit this rolled-edge profile. Kitchen runs cap drawer borders, keeping prep zones clear of protruding hardware. Bathroom vanities take short spans under the counter edge; dressers take matched lengths across stacked fronts. Living room sideboards, dining credenzas, and home-office storage gain the same rounded grip; kids' room units take it on low fronts too, where the rounded rim stays smooth beside small hands.
Carton Sizing and Staged Batch Timetables
Export cartons measure 24 x 18 x 10 cm and hold 0.5 kg gross. Production scheduling runs in three bands: 1-10 pieces leave the line in 7 days, 11-50 pieces in 12 days, 51-200 pieces in 20 days. Samples are available on request for finish evaluation. Project teams can send door schedules, finish choices, and length lists to Brassera for wholesale quotations.
