Zinc Alloy Lever Door Lock with Occupancy Indicator Window

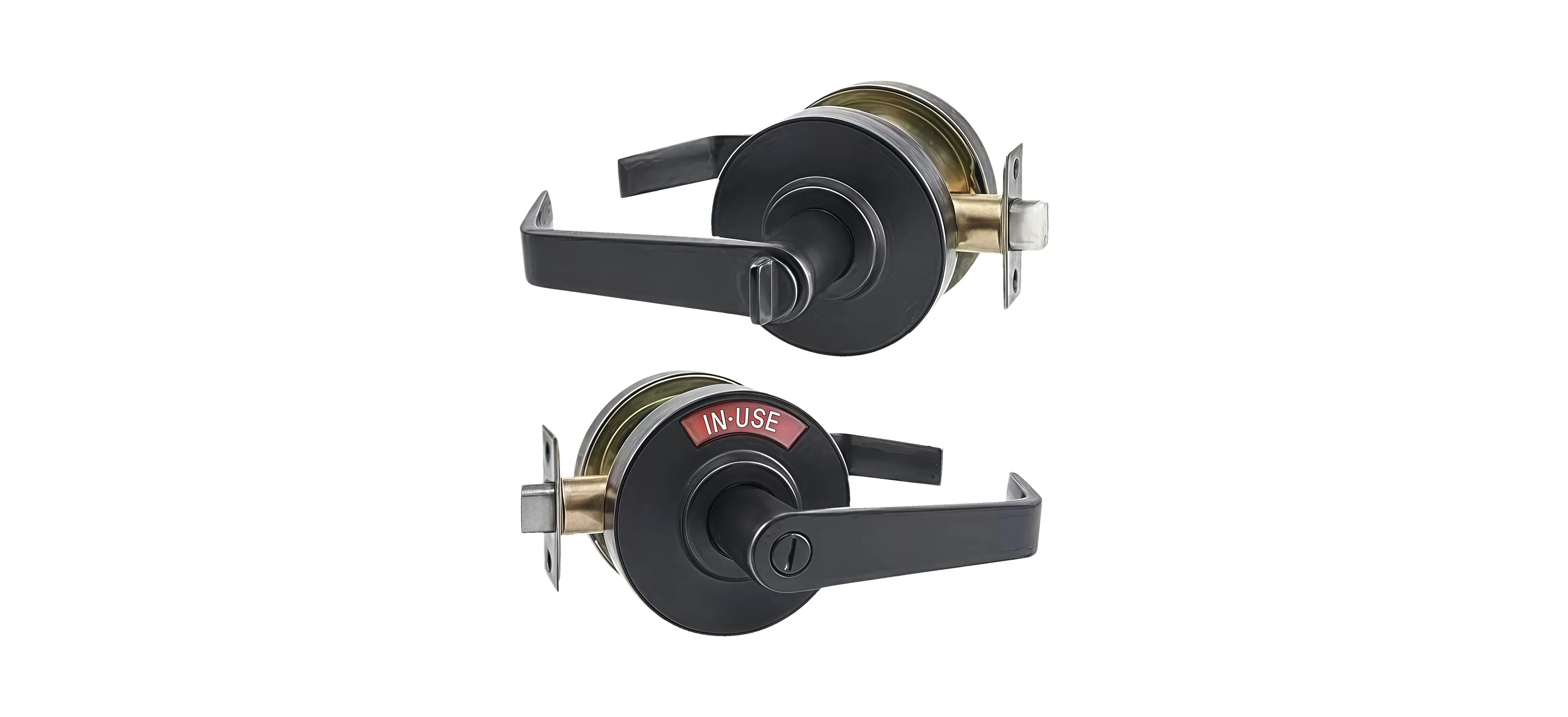

Brassera BRS-DOR-ZNC-002 is a zinc alloy lever door lock with a Vacant and In-Use indicator in Matt Black, Brush Gold, Brush Nickel, or Bronze for guestrooms.
Specifications
- Model
- BRS-DOR-ZNC-002
- Material
- Zinc alloy
- Type
- Lever door lock with an occupancy indicator window
- Design style
- Modern
- Finish
- Matt Black, Brush Gold, Brush Nickel, Bronze
- Functions
- Key, Privacy (BK), Passage (PS), Dummy
- Handing
- Reversible for left-hand and right-hand doors
- Adjustable backset
- 2 3/8" (60.3 mm) or 2 3/4" (69.8 mm)
- Door thickness
- 1 3/10" to 2" (33.0 to 50.8 mm)
- Rose plate
- 1 21/25" (46.7 mm) across
- Lever length
- 5 3/25" (130.0 mm)
- Indicator
- Vacant / In-Use window on the rose plate
- Usage
- Interior doors: guestrooms, bathrooms, clinics, offices, apartments
- Customization
- Accept OEM; graphic design, 3D modeling, cross-category sourcing
- Feature
- Easy installation
- Minimum order
- 10 pieces
- Package size
- 35 × 28 × 20 cm
- Gross weight
- 1.5 kg
- Brand
- Brassera
An Occupancy Window on the Rose Plate
Privacy indication matters across shared guestrooms, clinic consultation areas, plus hospitality suites. Setting the rose plate window to Vacant or In-Use places room status directly beside lever operation. Occupants read status before touching hardware, which helps cut interruption across multi-user environments. Brassera model BRS-DOR-ZNC-002 combines that status window with a zinc alloy body for commercial interiors.

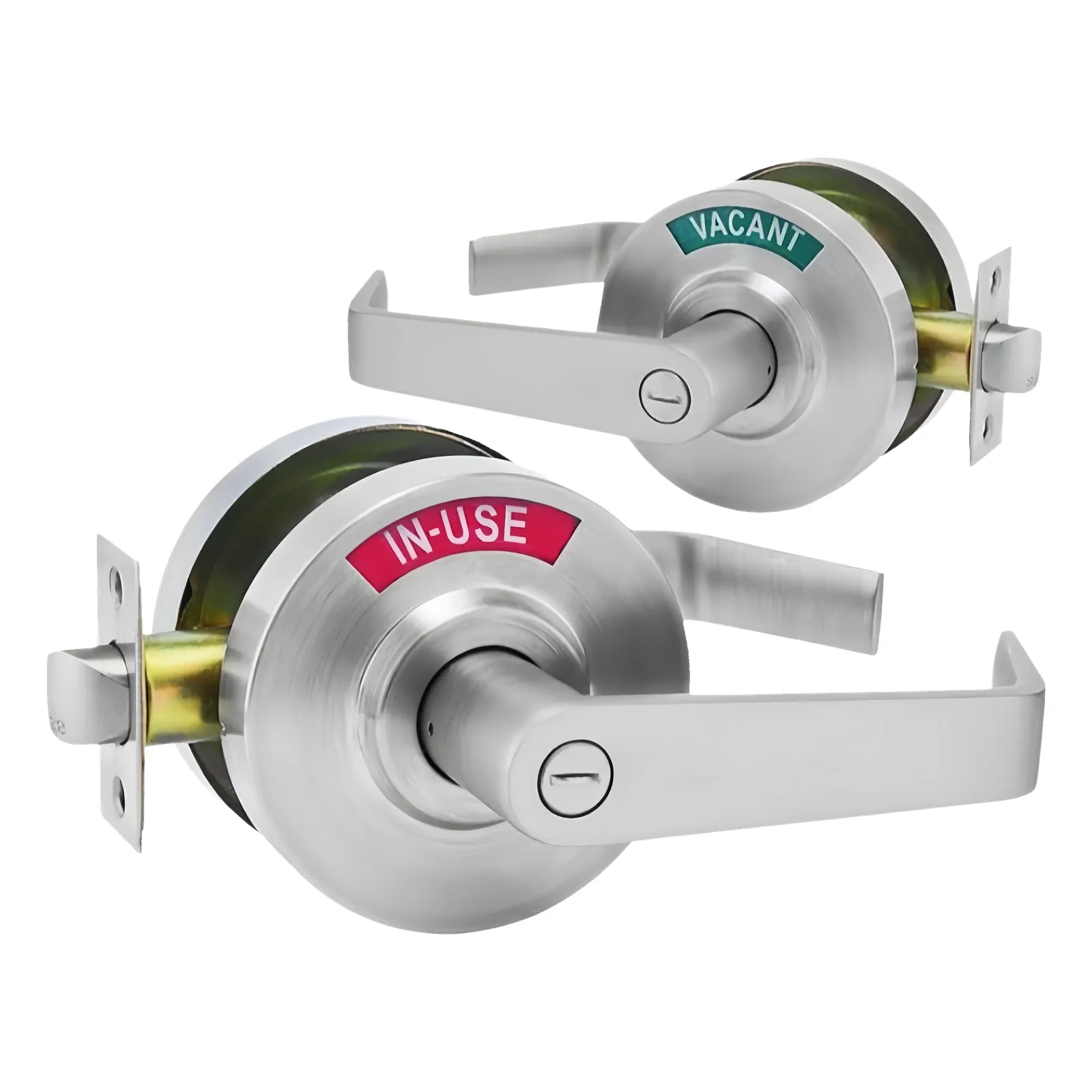

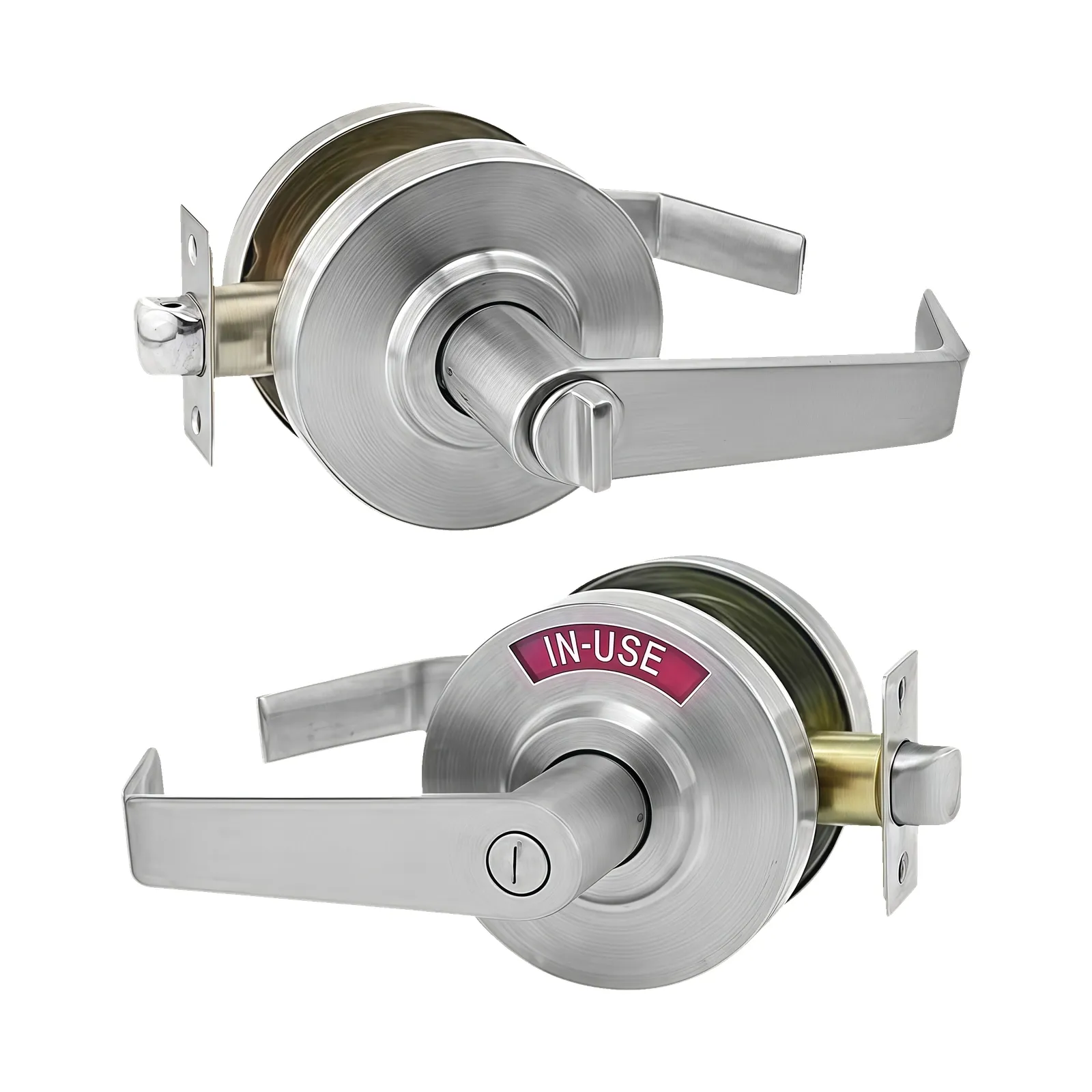

The rose plate window keeps room status readable from the corridor side. Visitors identify occupancy at a distance and confirm it up close, and the window shows either Vacant or In-Use as the room requires.
Reversible Lever with a Keyed Option
Reversible architecture allows installation on both left-hand plus right-hand swinging doors without factory pre-configuration. Project teams order one inventory configuration for entire corridors, which removes handing confusion during jobsite distribution. Lever geometry presents clean linear profiles extending toward terminal ends. Four functional specifications cover commercial door schedules: Key, Privacy (BK), Passage (PS), plus Dummy. Keyed variants show a keyhole set into the lever.
Privacy versions serve enclosed suites, passage trims fit corridors with open transit, plus dummy trims complete stationary leaves on pair doors. Keeping one lever profile across all four choices lets designers hold consistent visual rhythm along corridors. One corridor can therefore mix swing directions without splitting the order into handed batches. Matching keyed and non-keyed sets can be split between a manager's office and its adjoining washroom.
Door Thickness Span with Two Backset Positions
Door thickness profiles span 1 3/10" to 2" (33.0 to 50.8 mm). That single range simplifies scheduling for multi-unit properties, and retrofit work benefits as much as new build because existing bore positions rarely need reworking.

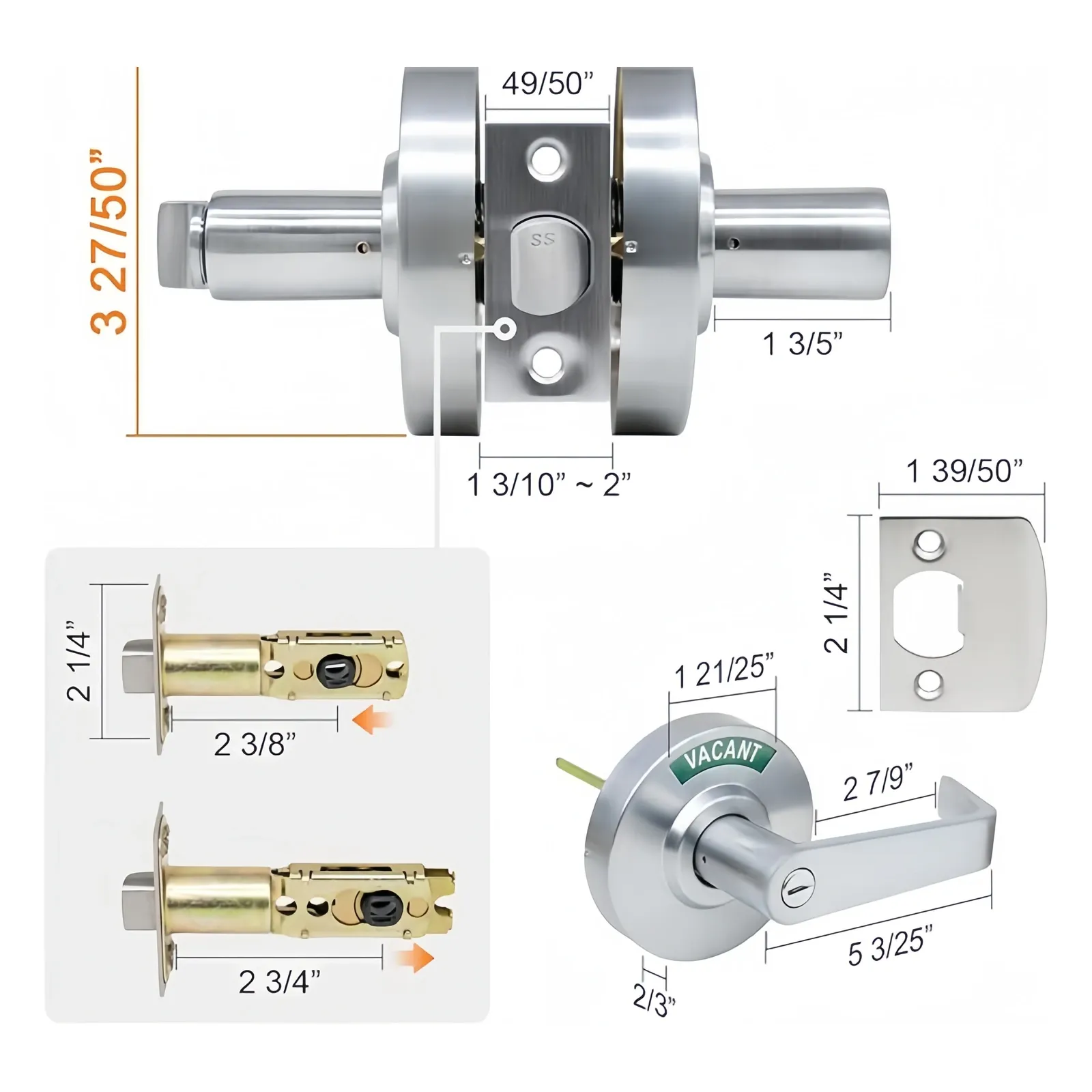

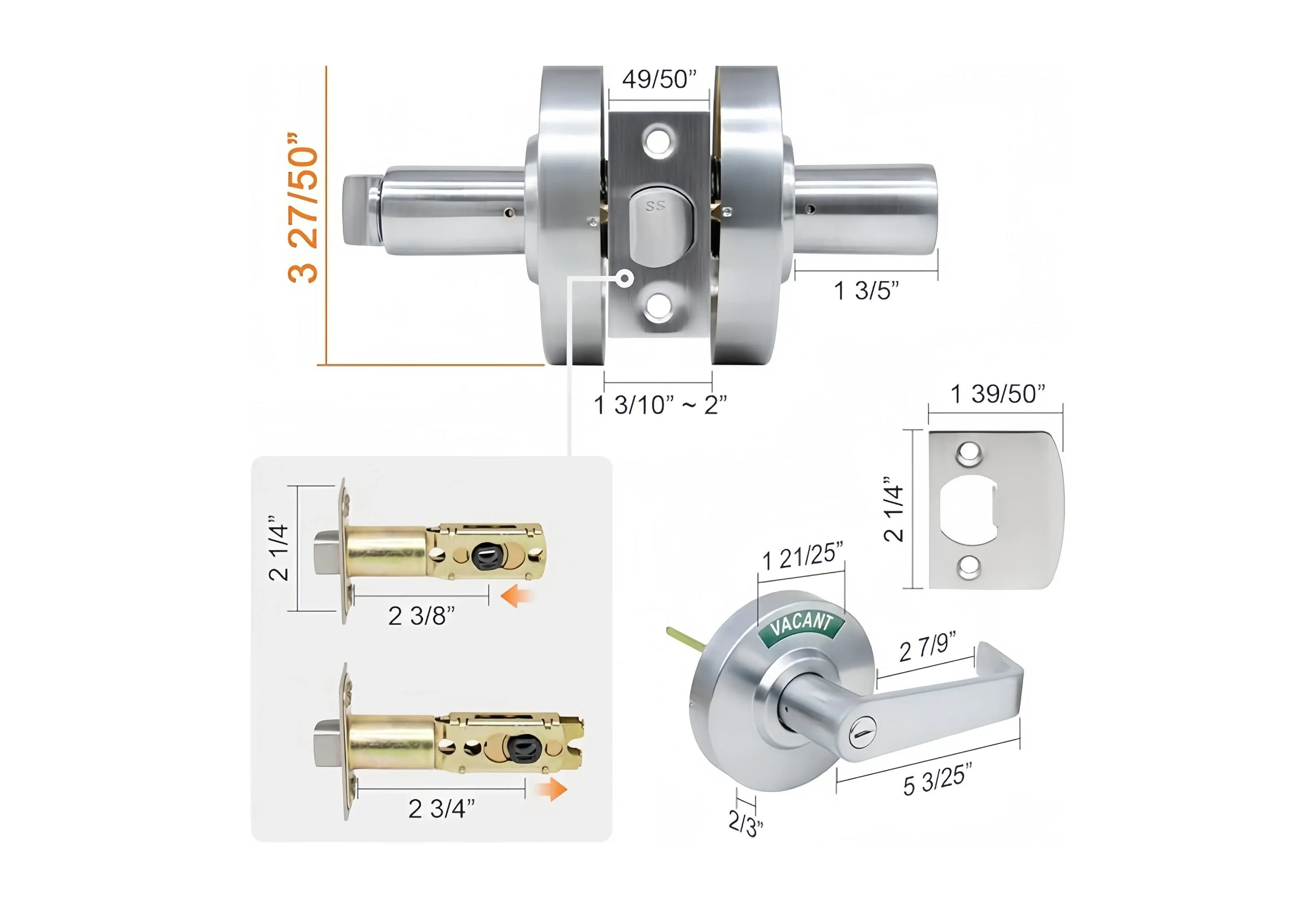

Latch assemblies offer dual-position backsets of 2 3/8" (60.3 mm) plus 2 3/4" (69.8 mm) to align with standard edge-bore center lines. The rose plate measures 1 21/25" (46.7 mm) across, plus the straight lever runs 5 3/25" (130.0 mm) end to end. The matching strike plate ships with the latch.
Metallic Surface Options for Guest and Patient Rooms

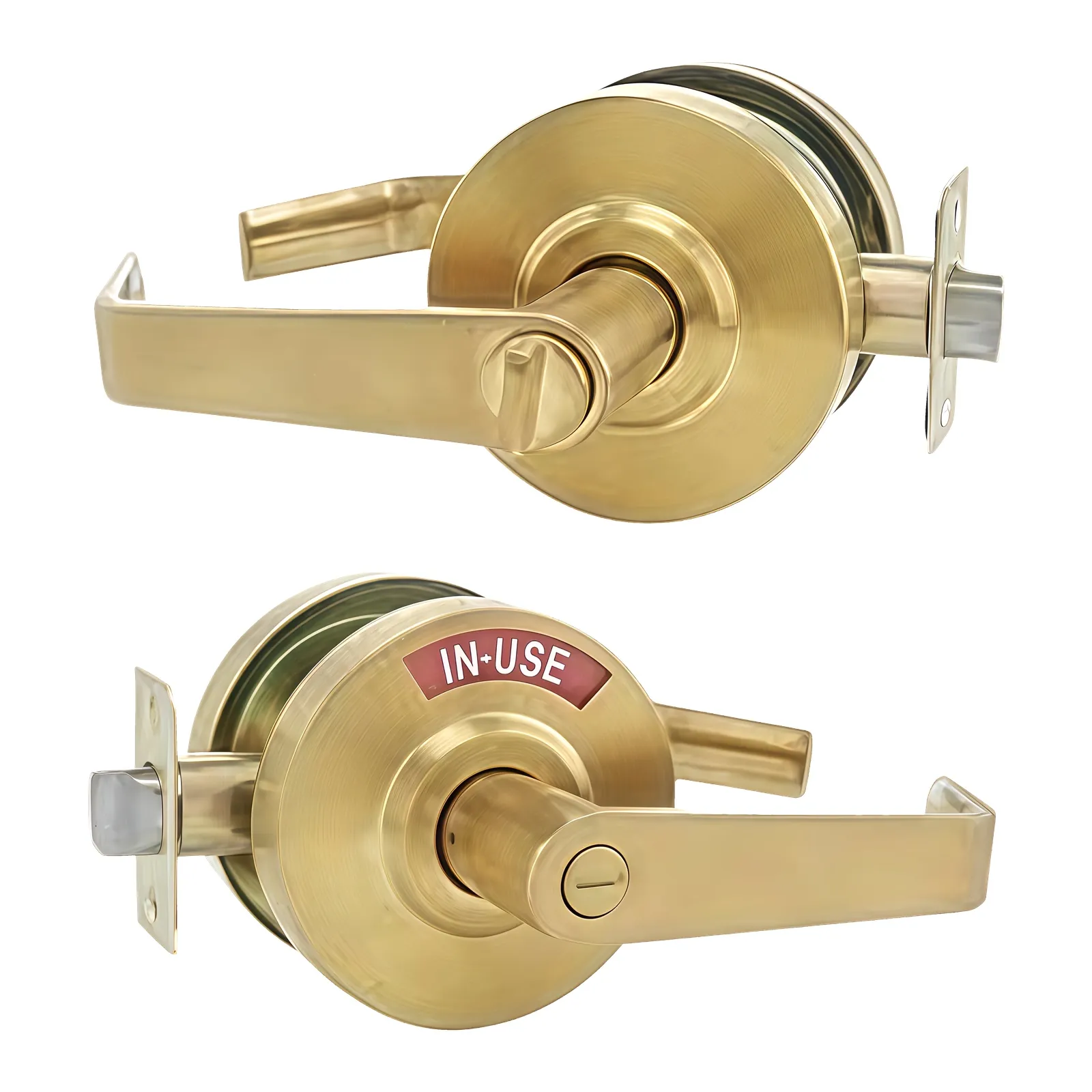

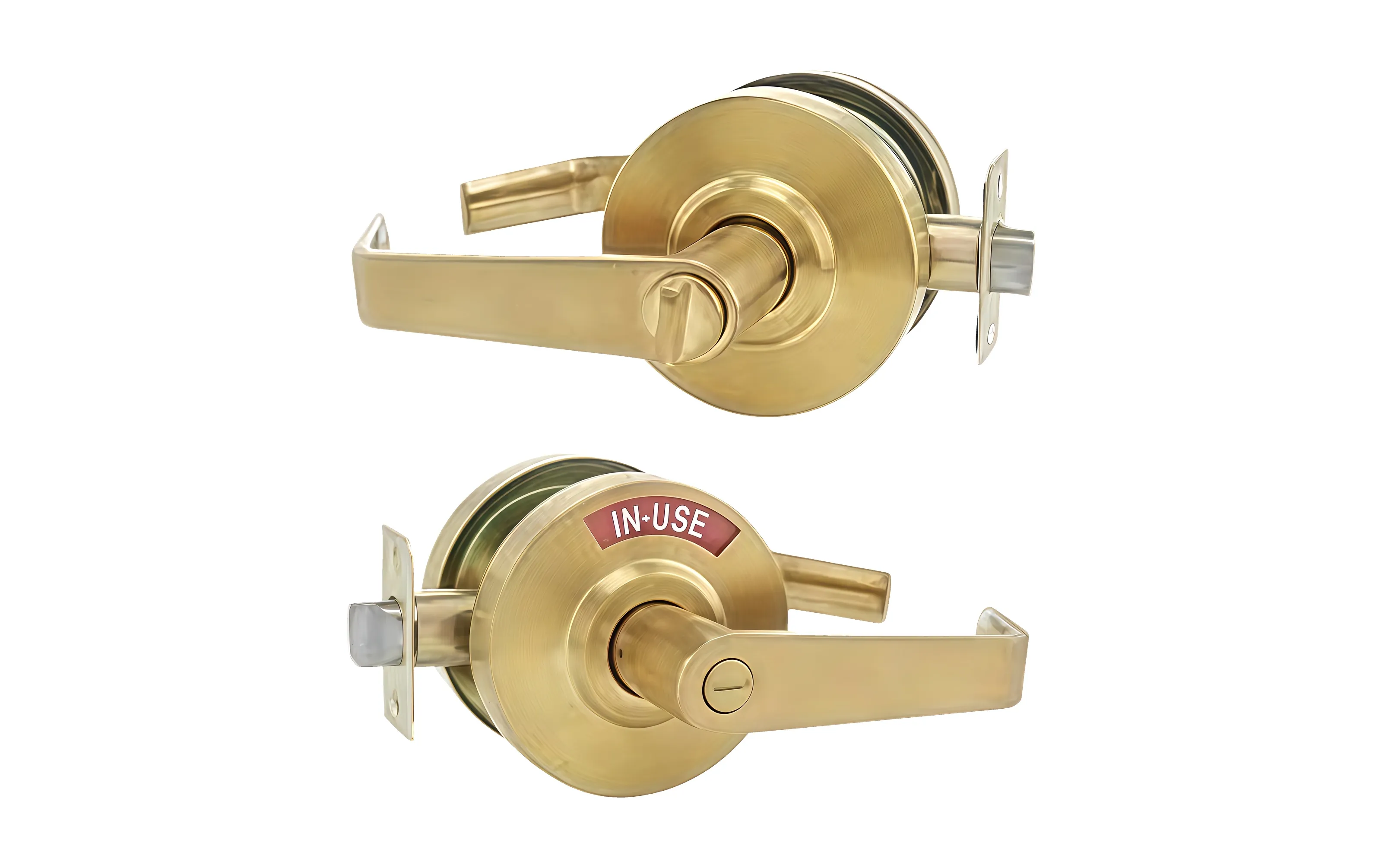

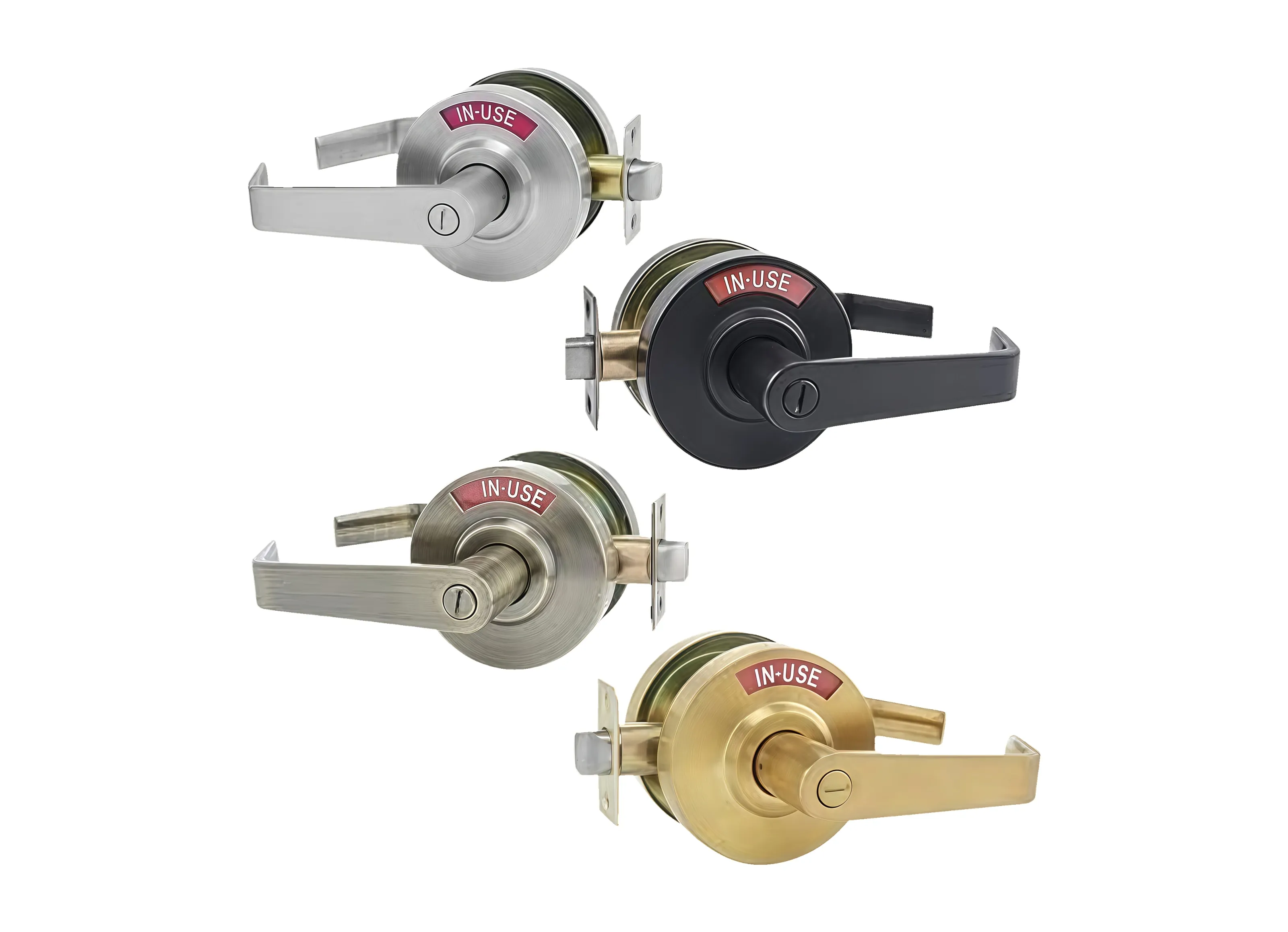

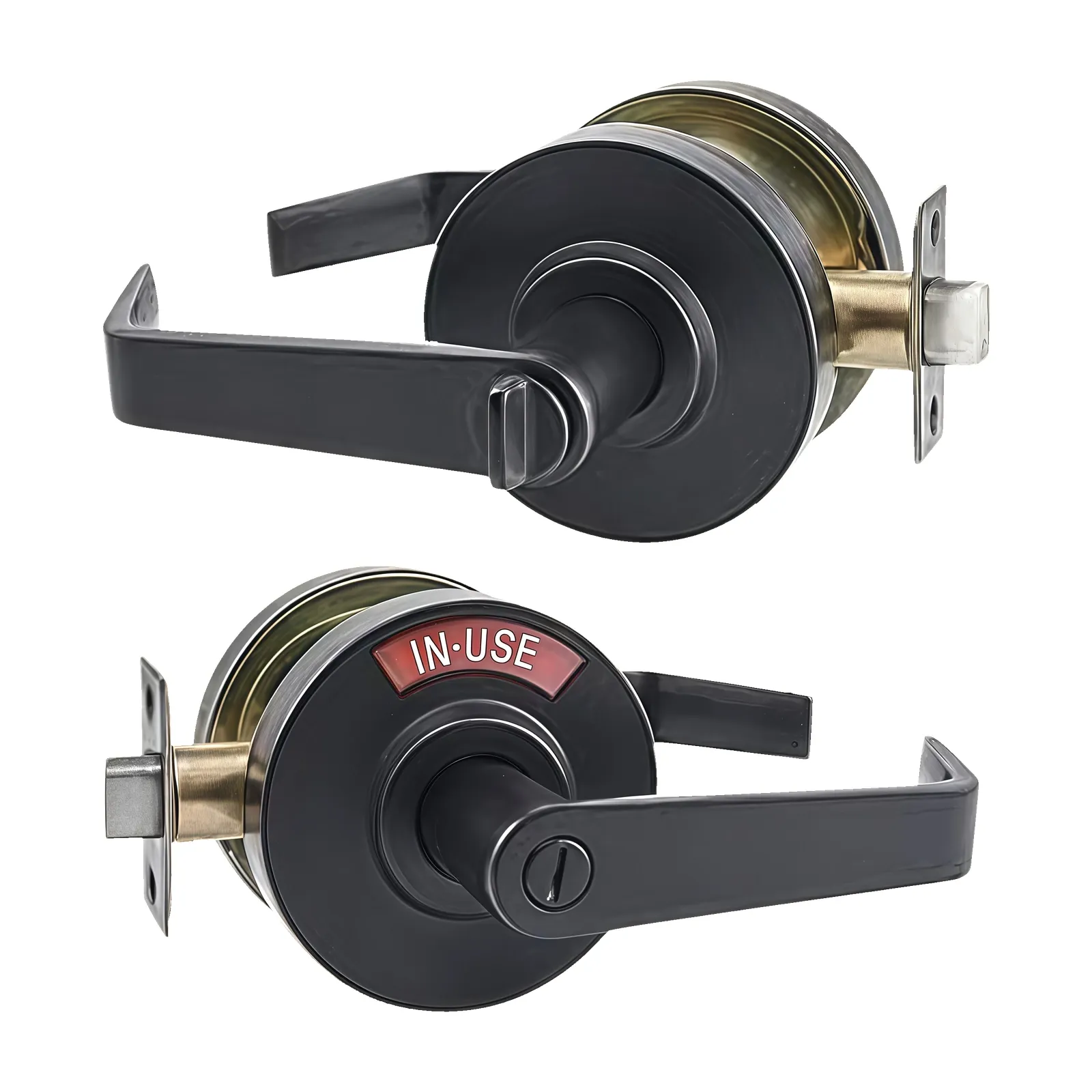

Four factory finishes address varied architectural palettes: Matt Black, Brush Gold, Brush Nickel, plus Bronze. Low-sheen Matt Black reads crisp against light timber plus painted leaves, while warm Brush Gold suits upscale hospitality suites plus executive lounges.

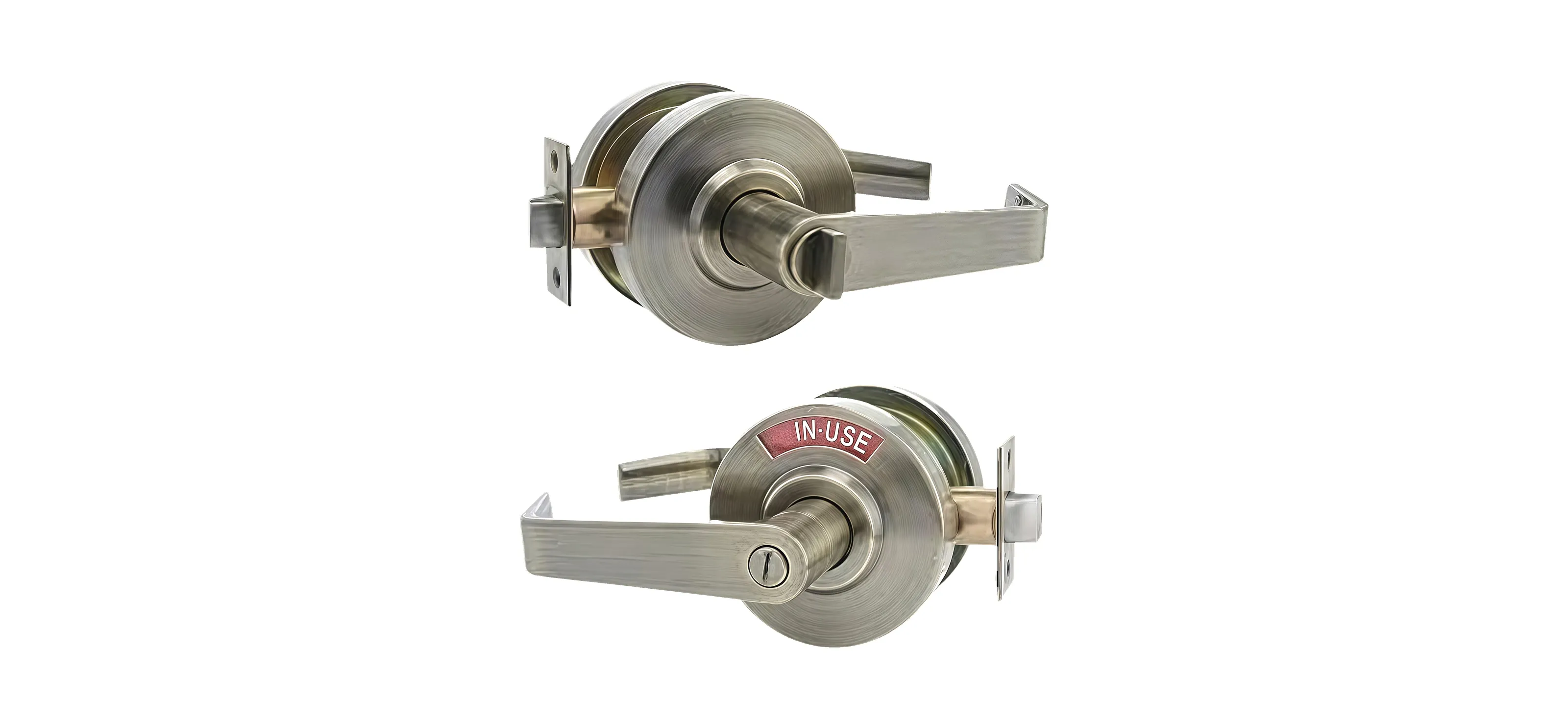

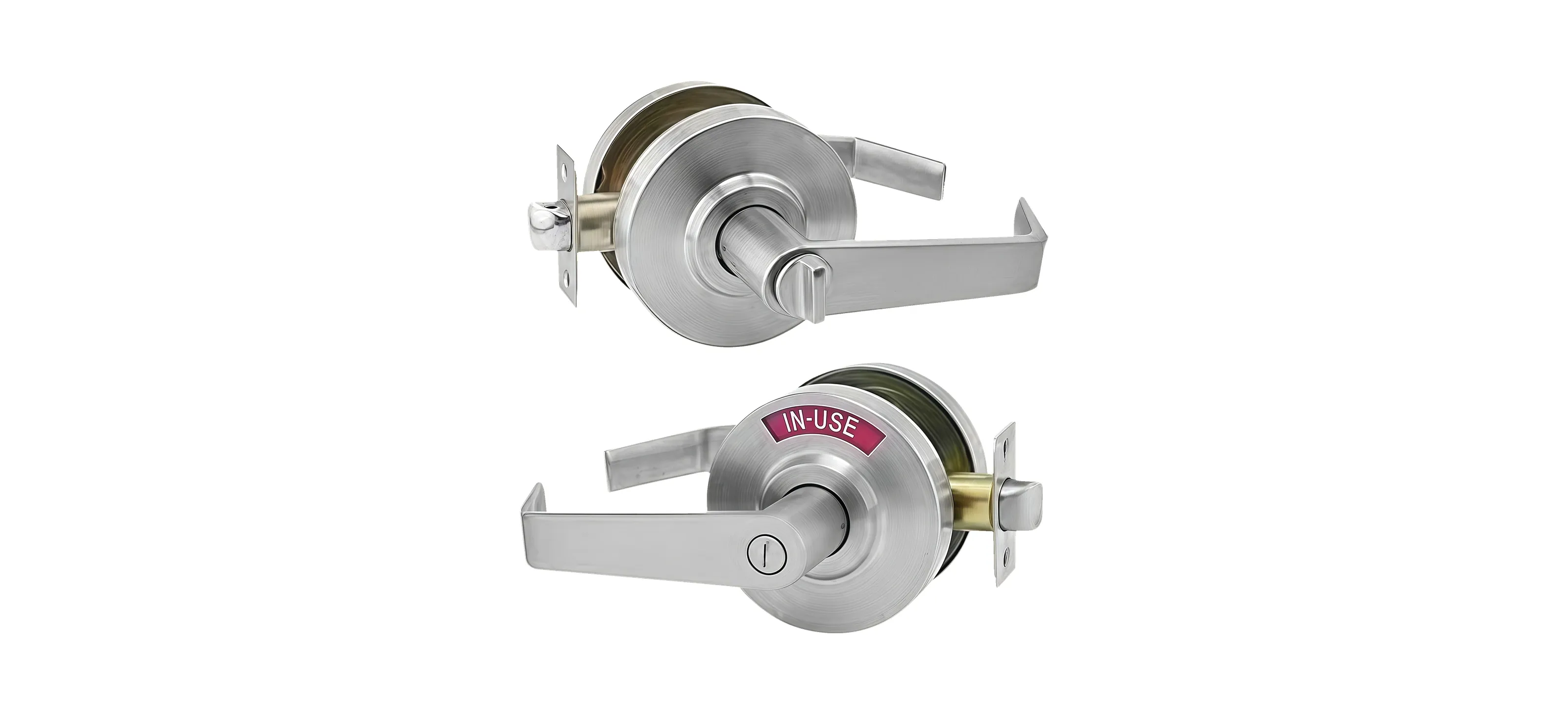

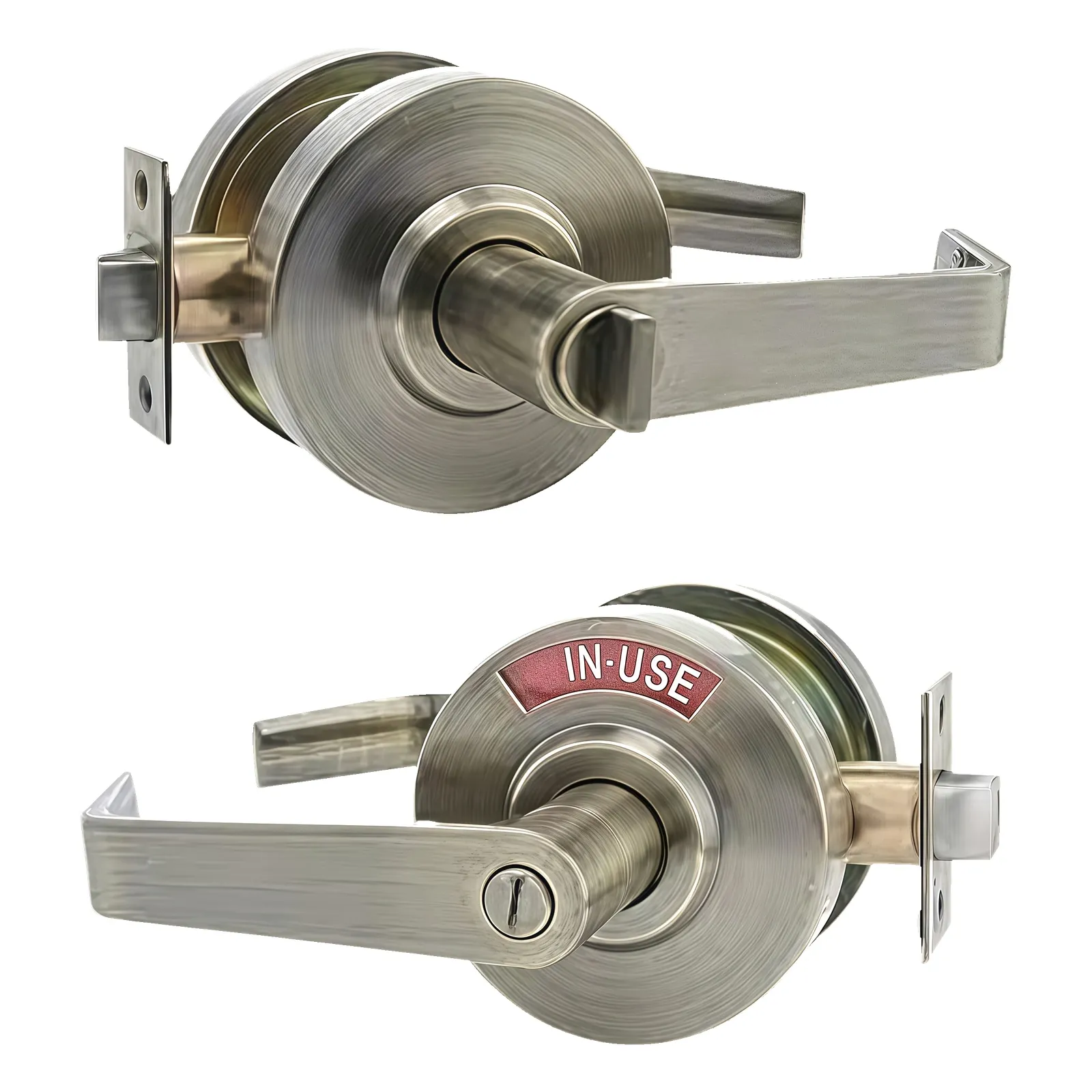

Brush Nickel brings a neutral metallic tone to clinics, hotel corridors, plus multi-family work. Deep Bronze carries an earthy character suited to heritage hospitality plus natural timber doors. Using one finish across guestroom access doors, en-suite washrooms, plus adjoining closets keeps a property visually coherent. Ordering a single finish for a floor keeps replacement stock simple, while mixing palettes across wings lets a property distinguish public rooms from staff areas. Pairing Matt Black corridors with Brush Gold reception doors, for example, separates front-of-house from back-of-house without changing hardware specification.
Easy Fitting on Pre-Bored Door Leaves
Zinc alloy forms the body of this lockset. Lever profiles stay smooth along the grip plus crisp along the rose perimeter, which suits restrained interior decors across hotels, offices, plus clinics.
Easy installation is a core characteristic of this lockset, plus the fitting suits standard pre-bored door leaves. Crews fitting multiple room sets move through commercial renovations or new construction without extra preparation work. Rose covers hide the fixing points once the assembly is seated, leaving the rose plate, indicator window, and lever as the visible elements on the door face. One spare set kept on site covers maintenance swaps without reordering. Bores cut for standard cylindrical locksets accept the assembly, so joinery can be prepared before the hardware arrives on site.
OEM Programs and Carton Packing
Brassera accepts OEM production for commercial distributors, joinery contractors, plus hospitality purchasing groups. Engineering support covers graphic design, 3D modeling, plus cross-category sourcing across a hardware schedule. Sample units allow visual evaluation plus finish checks before bulk manufacturing commitments.
Each lockset ships with foam cushioning in an individual inner box, packed into outer corrugated cartons. Specifiers plus procurement directors can request custom packaging, trade samples, or project quotations through Brassera. Inner boxes keep individual sets separated so a distributor can break a carton without mixing handing or finish across rooms. Procurement teams receive one quotation covering the lock body, latch, and strike plate rather than assembling parts from separate suppliers.
