Cabinet Pulls
Smooth Cylindrical Aluminum Cabinet Bar Pull
BRS-BAR-ALU-010 pairs an untextured Ø12 mm cylindrical aluminum bar with square block posts at domed collar junctions. It comes in a Matt Black finish with five hole spacings up to 480 mm — a clean architectural profile for residential millwork.
Specifications
- Model
- BRS-BAR-ALU-010
- Material
- Aluminum
- Type
- Bar cabinet pull
- Design style
- Modern
- Form
- Cylindrical bar on square block posts
- Hole spacing (C.C)
- 128 / 160 / 192 / 320 / 480 mm
- Bar diameter
- 12 mm
- Projection
- 39 mm
- Post footprint
- 16 x 10 mm
- Overall length
- Hole spacing + 13 mm
- Finish
- Matt Black
- Mounting
- Two-post through-panel; mounting screws included
- Usage
- Cabinet, drawer, dresser, wardrobe, cupboard
- Feature
- Easy installation, eco-friendly, durable; resists rust
- Customization
- Custom sizes and colors via OEM
- Minimum order
- 50 pieces
- Lead time
- 7 days (1-100 pcs), 15 days (101-1000 pcs), 22 days (1001-3000 pcs)
- Packaging
- Polybag + inner box + master carton
- Package size
- 30 x 15 x 15 cm
- Gross weight
- 0.15 kg
- Selling unit
- Single piece
- Place of origin
- Guangdong, China
- Brand
- Brassera

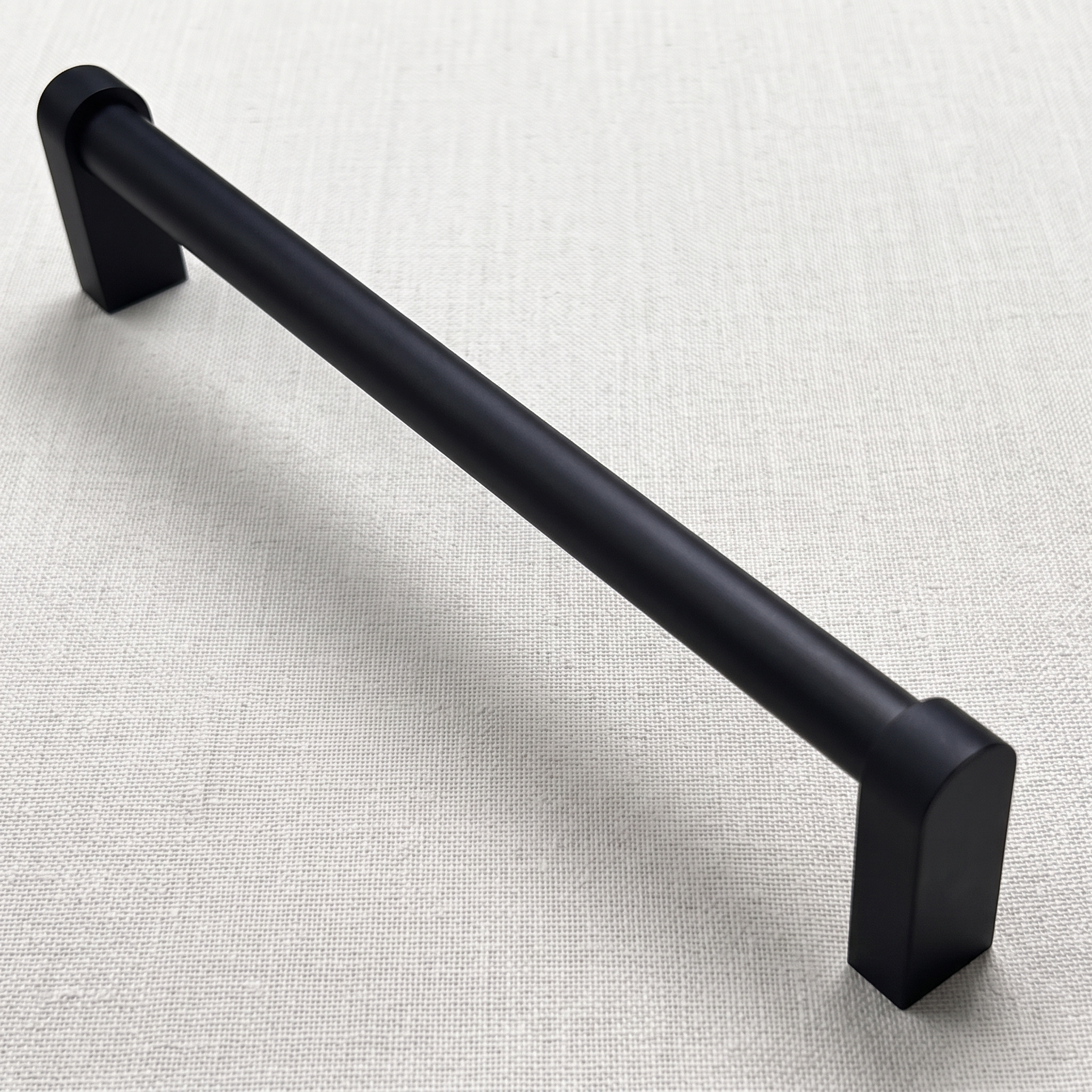

Smooth cylindrical aluminum bar pull: an untextured Ø12 mm round bar carried on two square block posts through domed collar junctions, Matt Black throughout. Five hole spacings run from 128 up to 480 mm.
Smooth Cylindrical Bar Joined to Square Block Feet by Domed Collars

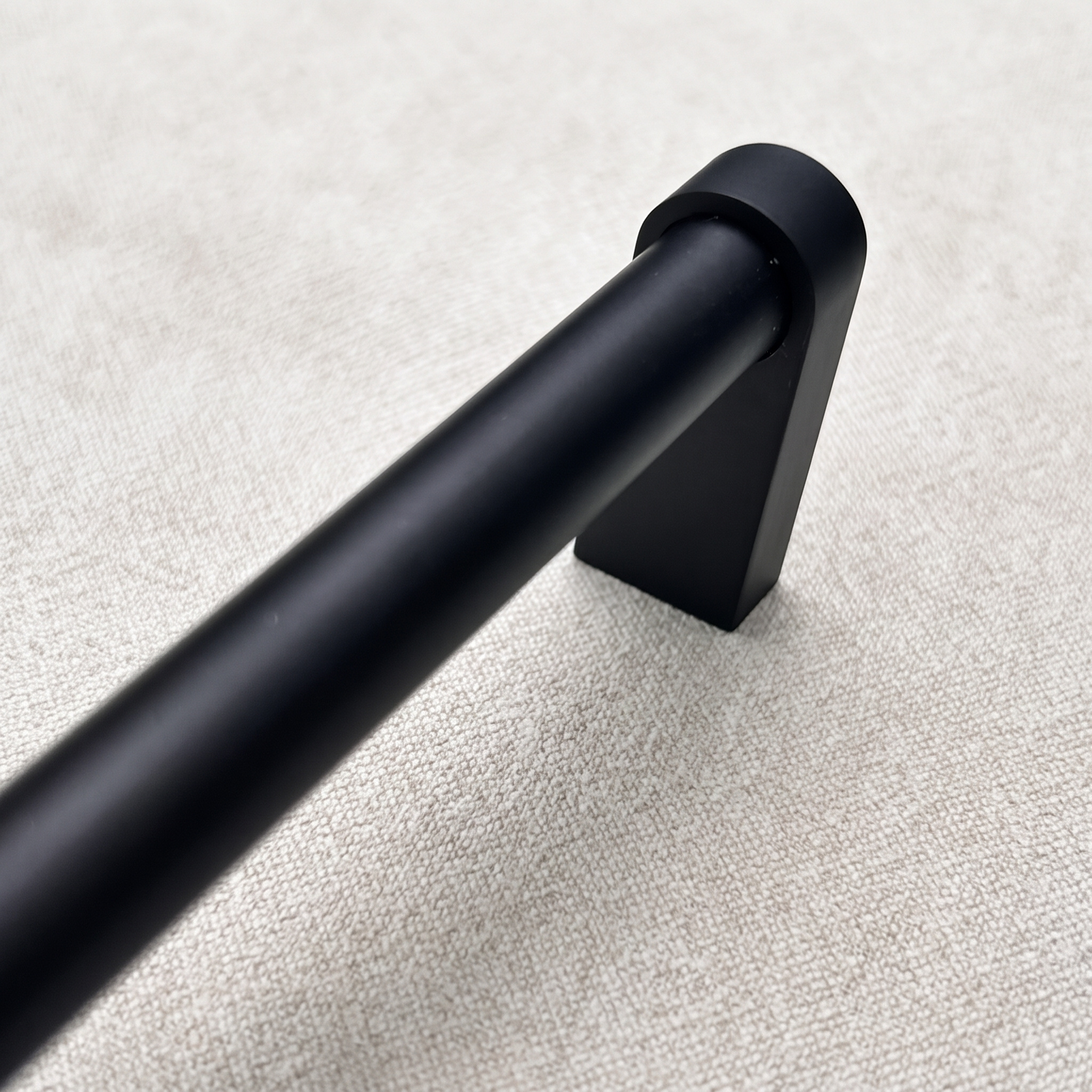

Brassera BRS-BAR-ALU-010 presents modern pull geometry combining circular with rectilinear profiles. Crafted from solid aluminum, this handle carries a smooth cylindrical grip measuring 12 mm in diameter, surface untextured end to end. At each end that grip terminates in a square block post with planar edges. Where the round bar enters the square post, it passes through a domed collar — a clean transitional junction between contrasting forms. Each domed cap rounds off its post top, so no sharp edge meets a fingertip. Round grip lines over block footings give dependable tactile comfort while maintaining disciplined visual structure across cabinetry elevations.
Matt Black Surface Treatment and Bespoke Color Production
Finished in uniform Matt Black, this pull offers a deep non-reflective surface coordinating with contemporary wood stains, painted panels, or stone worktops. It suits pale timber fronts as readily as darker casework schemes. Aluminum is non-ferrous — the matte layer resists rust in moisture-prone rooms such as kitchens and bathrooms, with durable wear characteristics for high-touch residential joinery. For interior architects needing project-specific palettes, Brassera supports custom finish development through full OEM production, matching bespoke tones for volume production.
Drilling Centers of 128 to 480 mm at a Fixed 39 mm Projection

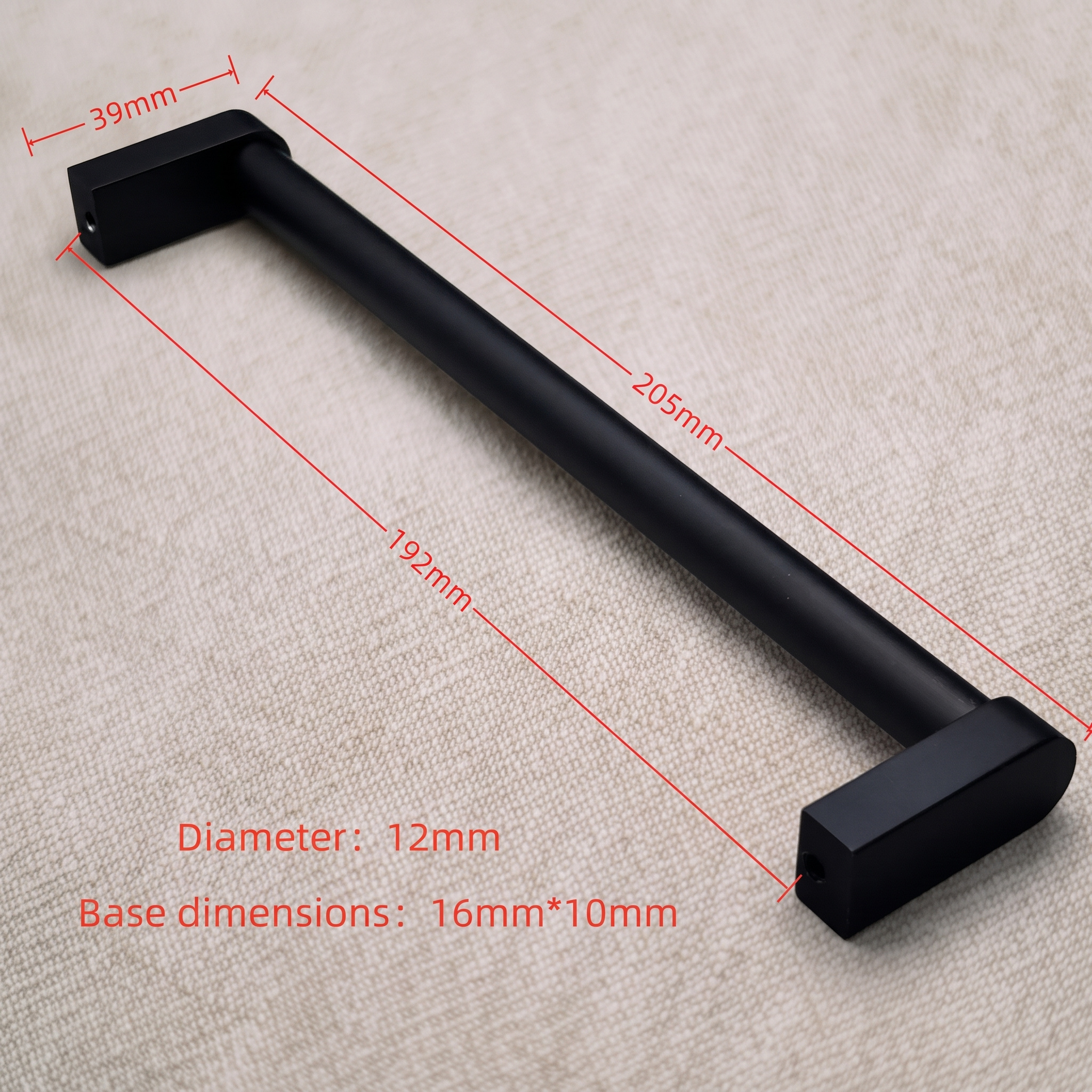

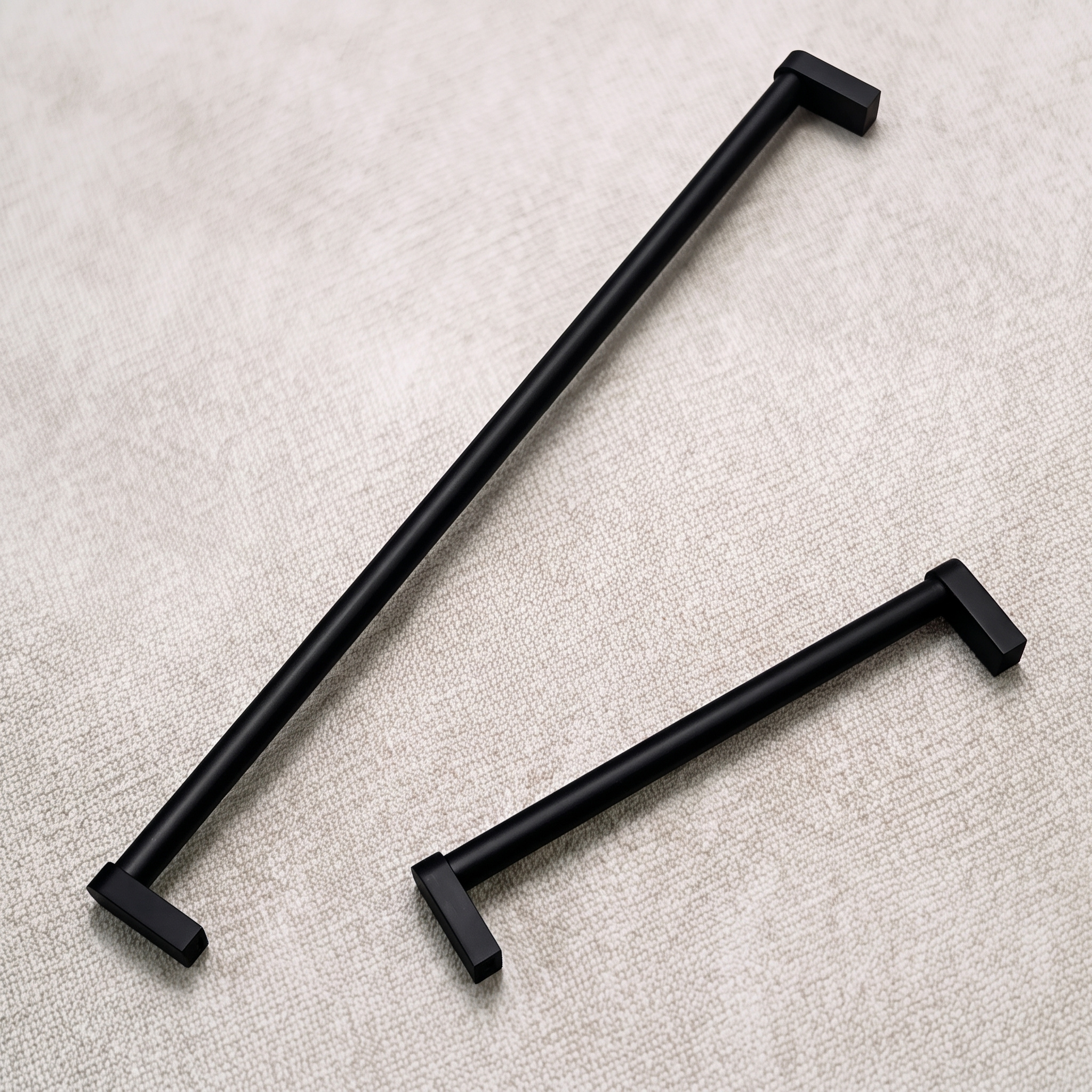

Standard production spans five center-to-center drilling dimensions: 128, 160, 192, 320, and 480 mm. At every size the 12 mm bar stands at a fixed 39 mm projection off the mounting face, offering comfortable finger clearance for daily operation. Overall length extends exactly 13 mm beyond hole spacing — the 192 mm spacing variant measures 205 mm end to end. Post footprints keep a compact 16 by 10 mm mounting profile, allowing clean placement along narrow stiles, face frames, or drawer borders without overhang.
Through-Panel Fastening into Two Block Feet
Mounting follows a standard rear-fastened pattern: drill two holes through the cabinet panel at chosen spacing, then run fixing screws in from behind into both block feet. Each post carries one fixing point, so a pull needs exactly two holes in the panel. Factory-supplied screws accompany every unit — easy installation in the plainest sense, no separate hardware run needed. Flat post bases sit flush against wood or composite panel faces, keeping each pull aligned square to its door through daily use on active casework.
Matching Each Span to Its Furniture Across the Residence

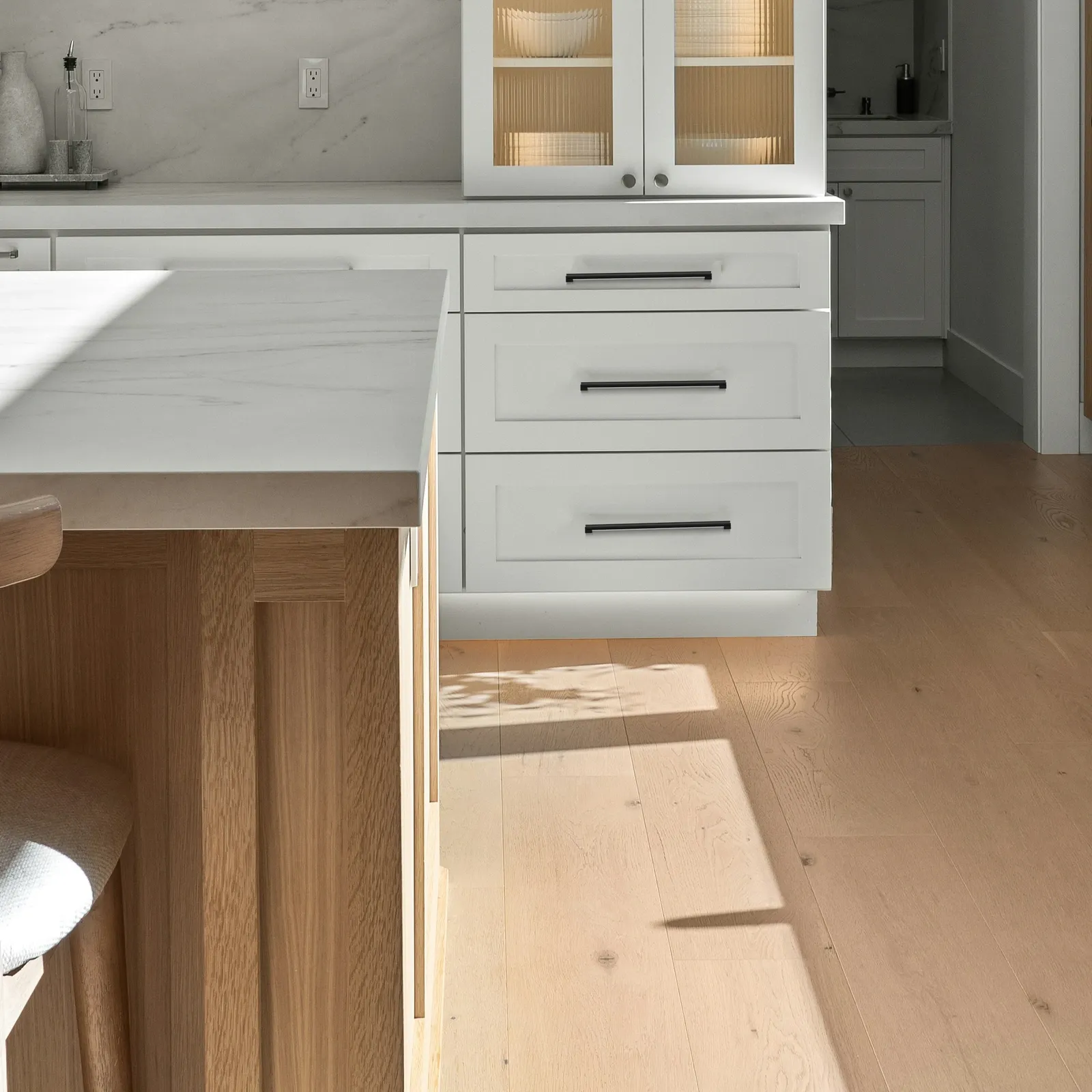

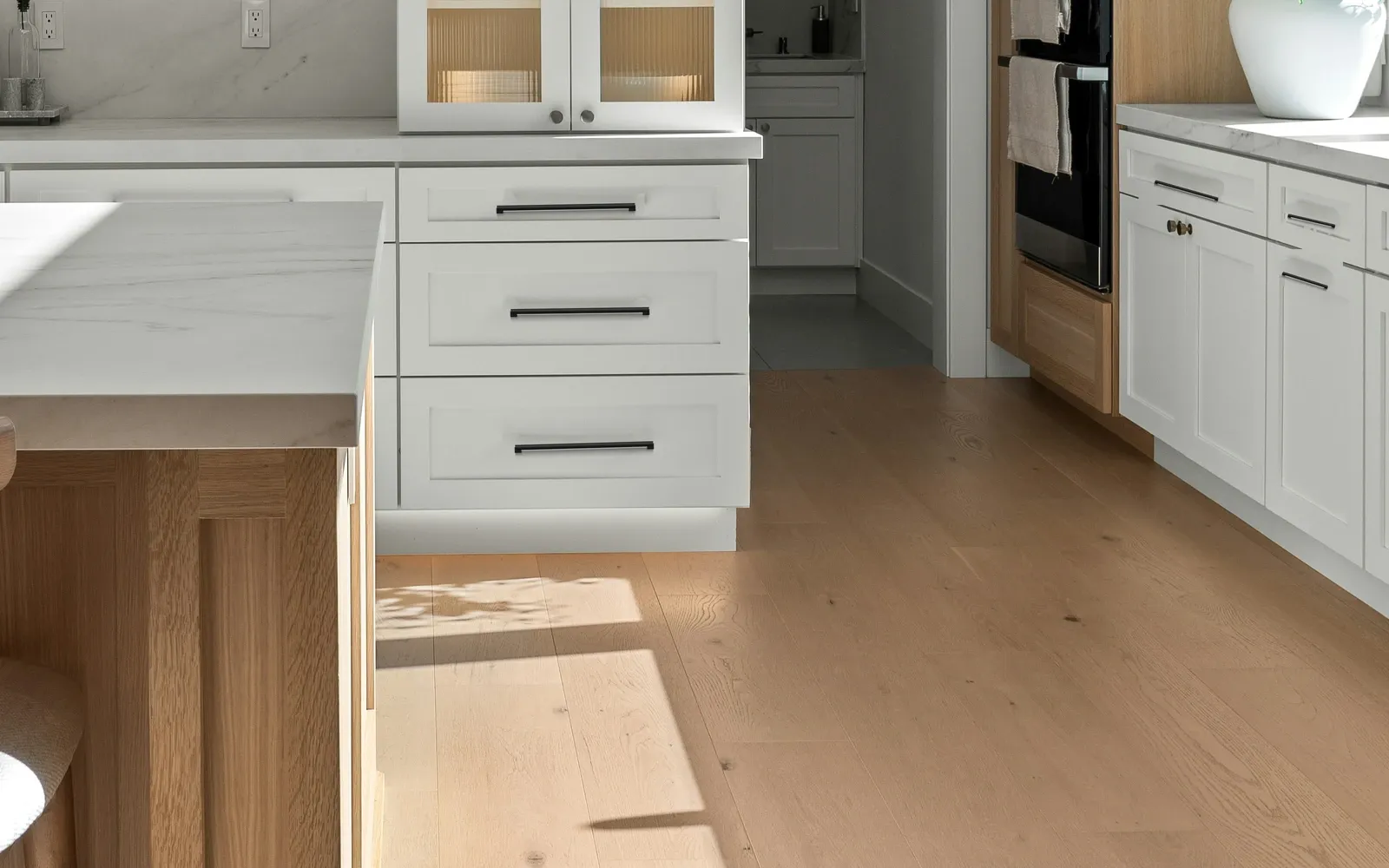

Clean geometric balance makes this hardware a multifunction pull for kitchen cabinets, storage cupboards, bathroom vanities, bedroom wardrobes, and dresser drawers alike. Shorter 128 or 160 mm lengths give proportional balance on vertical upper doors or slim drawer banks; longer 320 or 480 mm spans deliver extended leverage across tall cupboard doors, wardrobe leaves, and wide linen drawers. Its understated Matt Black profile integrates into home offices, wine cellars, dining rooms, entry halls, home bars, laundry rooms, and basement storage built-ins — unifying hardware schedules across an entire residence with cohesive visual weight.
Polybag, Inner Box, and Sample Submittals
Each pull travels in its own polybag plus inner box, then a 30 by 15 by 15 cm export carton at 0.15 kg gross per packaged unit. Production turnaround runs on structured volume tiers: 1–100 units dispatch within 7 days, 101–1,000 within 15 days, 1,001–3,000 within 22 days. Trade samples are available for finish matching plus physical submittal approval ahead of batch procurement. Specification teams needing made-to-order hole spacings or specialized custom lengths coordinate those bespoke dimensional requirements through Brassera's OEM manufacturing program.
