Cabinet Pulls
Color-Blocked D-Profile Cabinet Pull in Aluminium and Zinc
Brassera BRS-BAR-ALU-007 is a color-blocked D-profile cabinet pull in aluminium and zinc, with centre to centre runs from 96 mm to 780 mm.
Specifications
- Model
- BRS-BAR-ALU-007
- Material
- Aluminium and zinc
- Type
- Colour-blocked D-profile cabinet pull
- Design style
- Modern
- Finish
- Gray and Gold, Brass Gold and Gold
- Stocked length and centre to centre
- 107/96, 140/128, 203/192, 330/320, 500/480, 600/580, 800/780 mm
- Height
- 29 mm
- Bar diameter
- 12 mm
- Base size
- 10 x 12 mm
- Lengths
- Made to order beyond the stocked runs
- Usage
- Cabinets, drawers, dressers, wardrobes, cupboards
- Application
- Kitchen, bathroom, study, living room, bedroom, dining room, hotel, apartment, office
- Feature
- Eco-friendly, easy installation, resists rust, multi-purpose
- Fixings
- Mounting screws supplied
- Customization
- OEM and ODM accepted; logo on product or packaging
- Minimum order
- 50 pieces
- Package size
- 18 x 16 x 14 cm
- Gross weight
- 0.5 kg
- Brand
- Brassera
A Hatched Round Grip Between Two Plain End Blocks

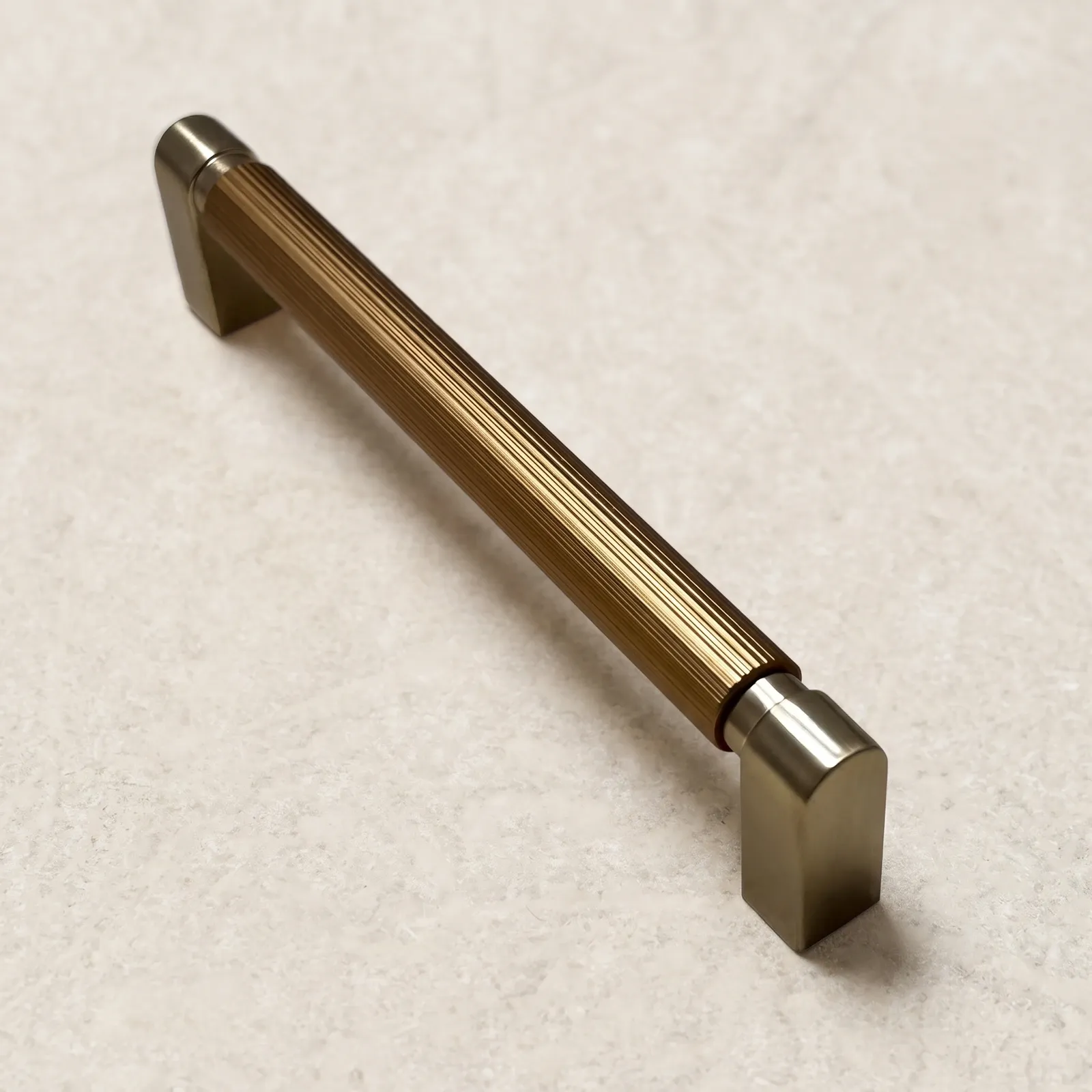

Brassera model BRS-BAR-ALU-007 is a D-profile cabinet pull. Round grip carries a close run of narrow grooves along its full length, closing at each end on plain metal block, so piece sets worked surface against smooth one. Groove band and block meet in one line, which is what makes the two-tone read clean rather than fussy.

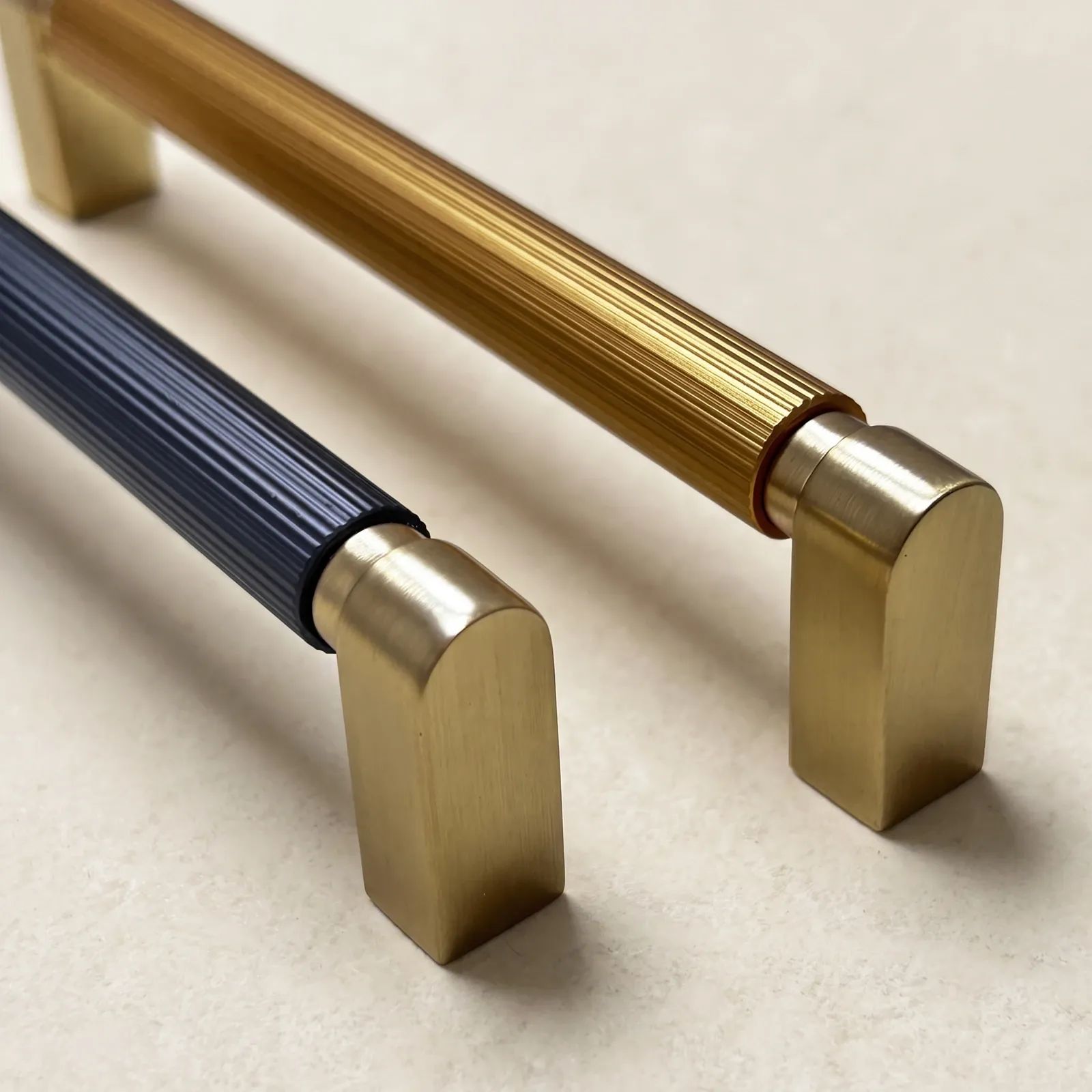

Grooves sit shoulder to shoulder, catching light in narrow strokes rather than one wide highlight. Plain end blocks stay smooth, each base pad meets panel face flush, and grip meets block at visible seam where two finishes join on gray version.
Gray with Gold, or Brass Gold with Gold

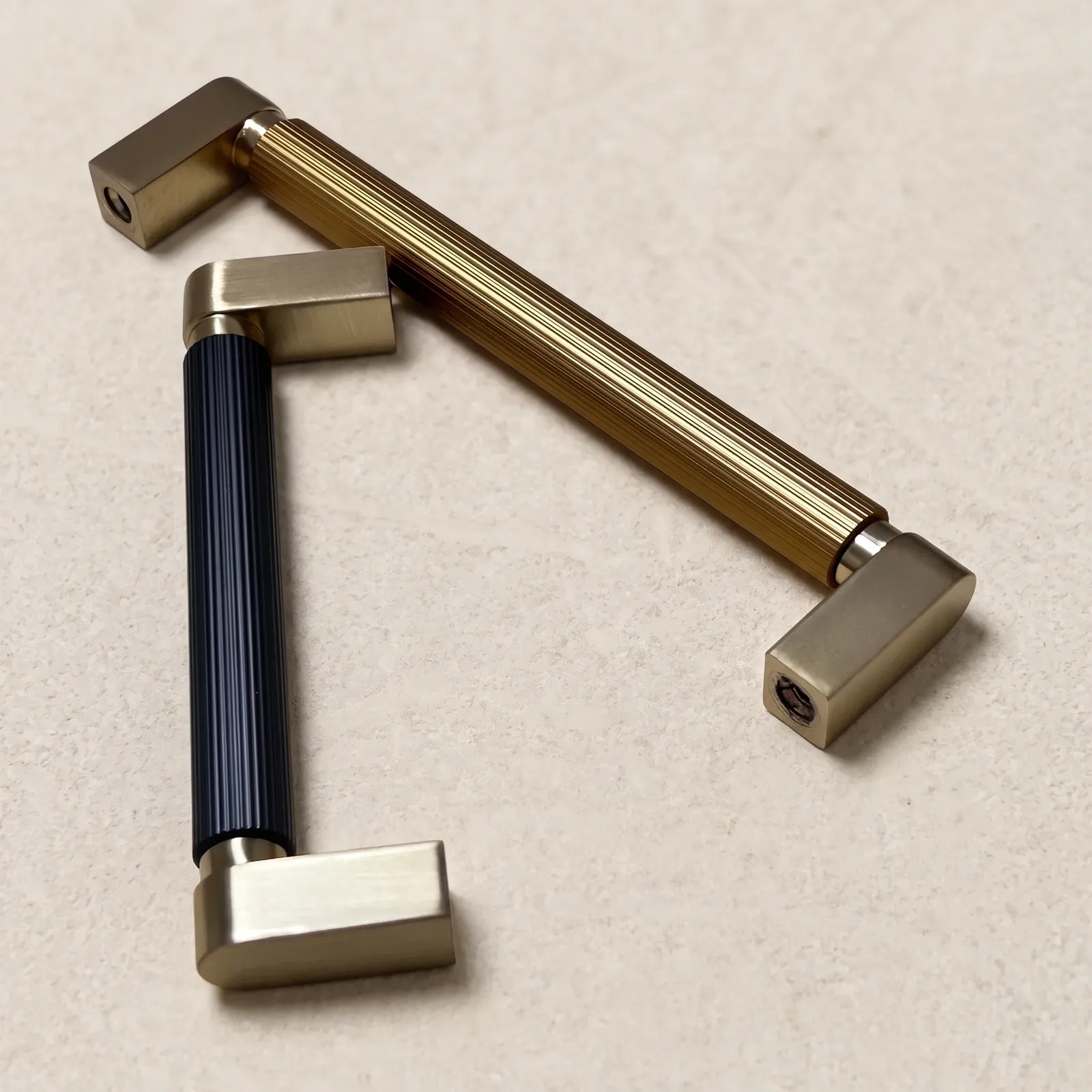

Two colorways offered. Gray with Gold pairs dark gray grip against warm gold end blocks; Brass Gold with Gold keeps grip and blocks in gold tones, so groove work alone carries design. Both use same shapes, so mixed order lines up across run.

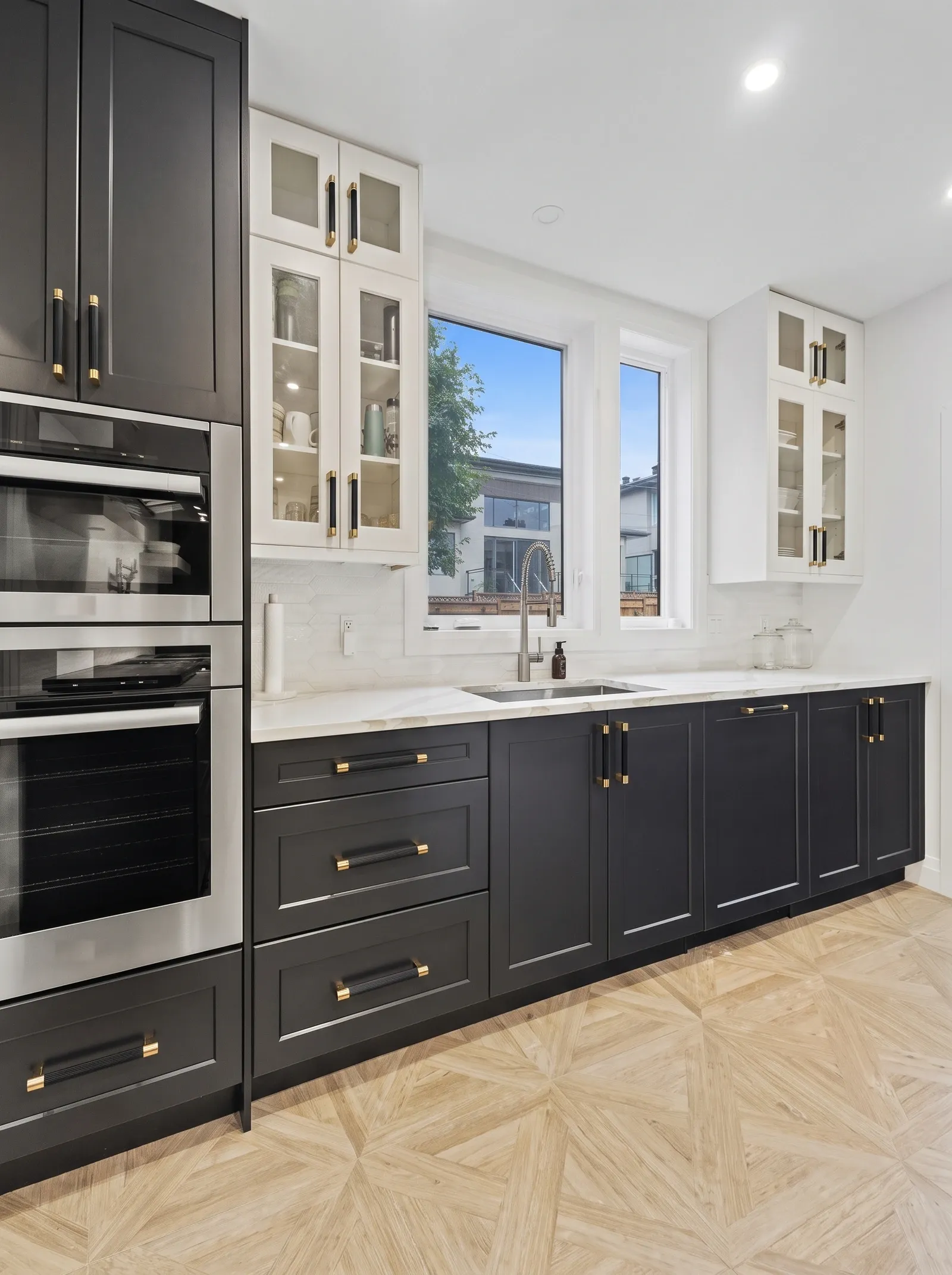

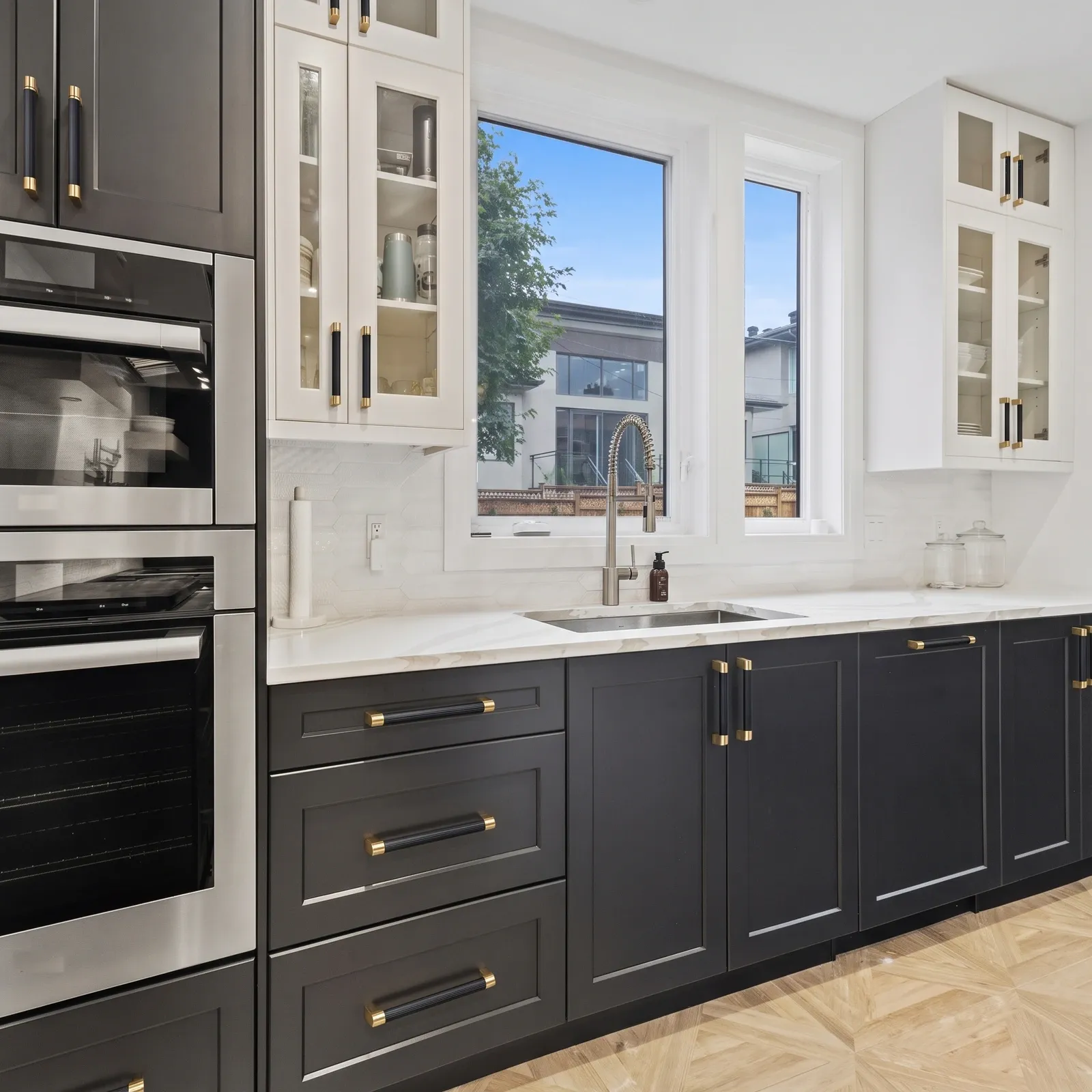

Choose gray version where cabinet front runs pale timber, white paint or light stone, since dark sleeve draws narrow band down panel. Choose brass gold where joinery is oak, walnut or painted in warm tone.
Seven Stock Lengths from 96 mm to 780 mm Centre to Centre
Seven stocked size pairs cover most cabinet widths. Overall length and centre to centre run together: 107 with 96 mm, 140 with 128, 203 with 192, 330 with 320, 500 with 480, 600 with 580, 800 with 780. Height holds at 29 mm on every size.
Longer runs beyond 800 mm are made to order. Project sends span it needs, production cuts grip and centres to suit, keeping one model across whole run of doors, from tall pantry leaves to wide pan drawers.
Aluminium and Zinc in One Pull Body
Body material is aluminium and zinc. Specification sheet gives two metals together for body and does not split them by part, so both grip and end blocks draw on same pair of metals.
Pull suits kitchens, bathrooms, wardrobes, dressers, cupboards. Same model serves hotel rooms, apartment blocks, offices, clinics, schools, retail joinery, wine cabinets, media consoles, cloakroom banks, utility cupboards, restaurant banquettes.

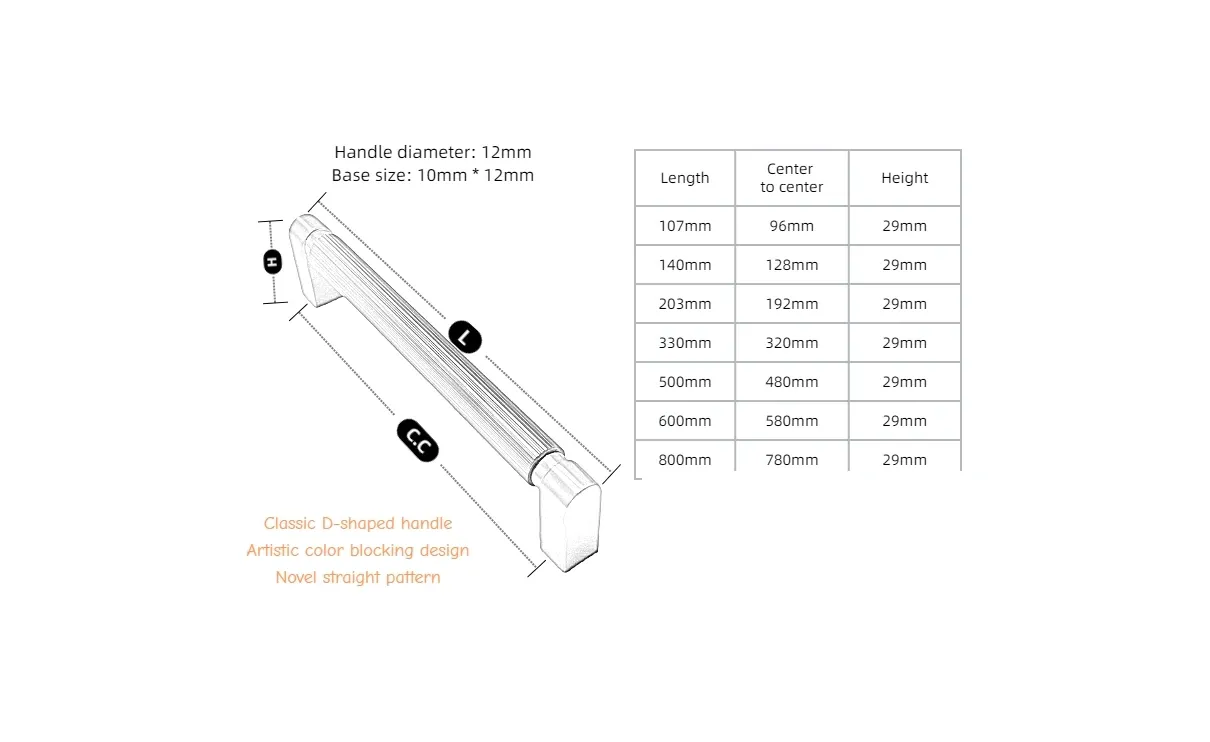

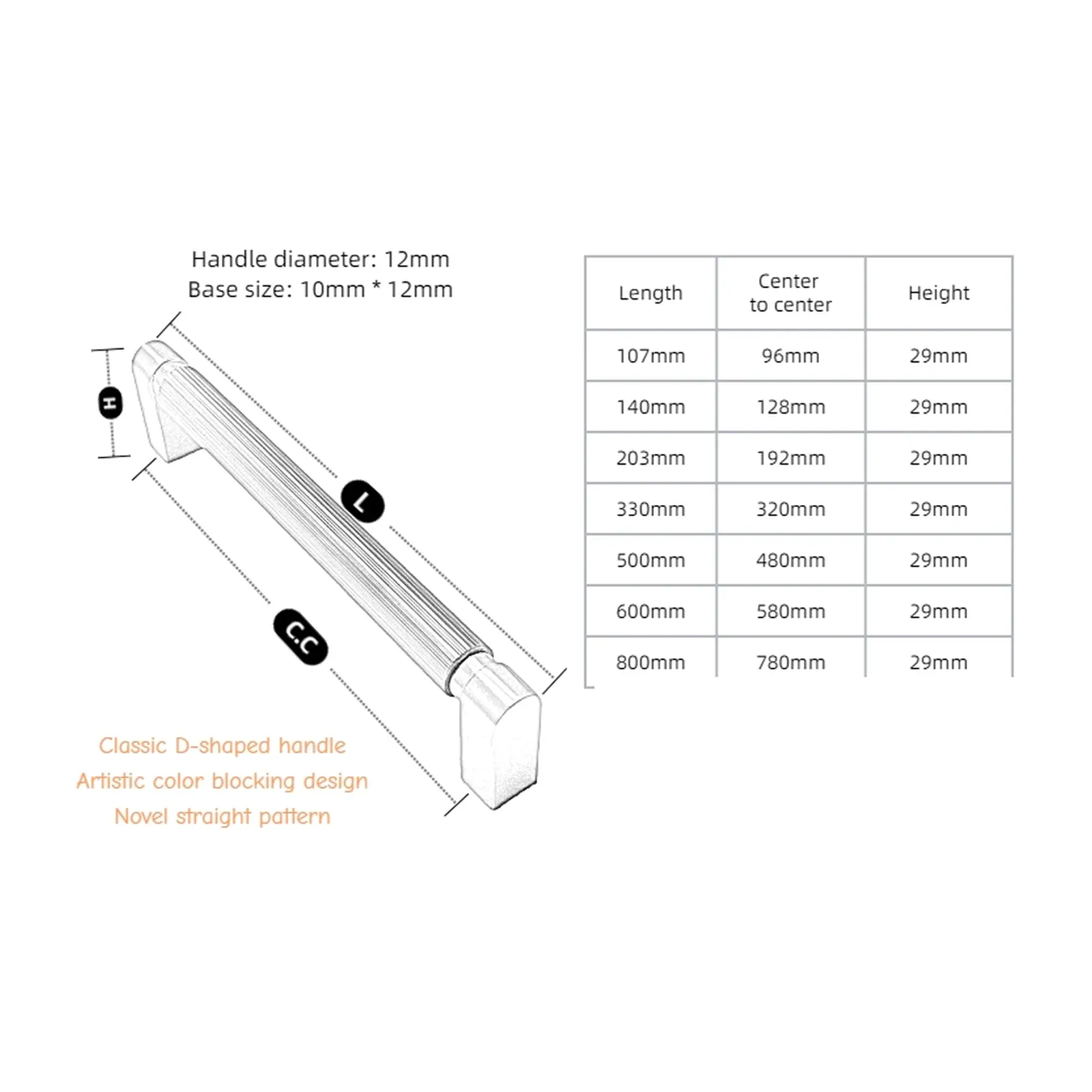

Bar Diameter 12 mm on a 10 by 12 mm Base
Grip measures 12 mm across, each end block stands on base of 10 by 12 mm, overall height is 29 mm. Those three figures let joiner check clearance before drilling: drawer pulls usually need less room than a bar with a taller standoff, and this one keeps a low profile against the panel.
Stocked and made-to-order sizes keep same grip diameter and same base footprint across range. Specifier can hold those two figures steady across whole kitchen and vary only span between centres.
Screws Supplied and Logo on Product or Packaging
Matching mounting screws arrive with each pull, so fitter can attach blocks without sourcing fasteners separately. Easy installation applies across range, stocked length or made to order, and base pad sits flat against timber, veneer, laminate or painted panel. A drill guide drawn from the centre to centre figure keeps both blocks on one line.
Buyer logos can be printed on pull or on its packaging, and Brassera accepts OEM work for this model. Each pull travels with foam in PE bag, then inner box, outer box; one unit packs at 18 by 16 by 14 cm with gross weight 0.5 kg. Lead time runs 10 days for 1 to 100 pieces, 15 days for 101 to 1000, 20 days for 1001 to 5000.
